WE-402FB-RYGB

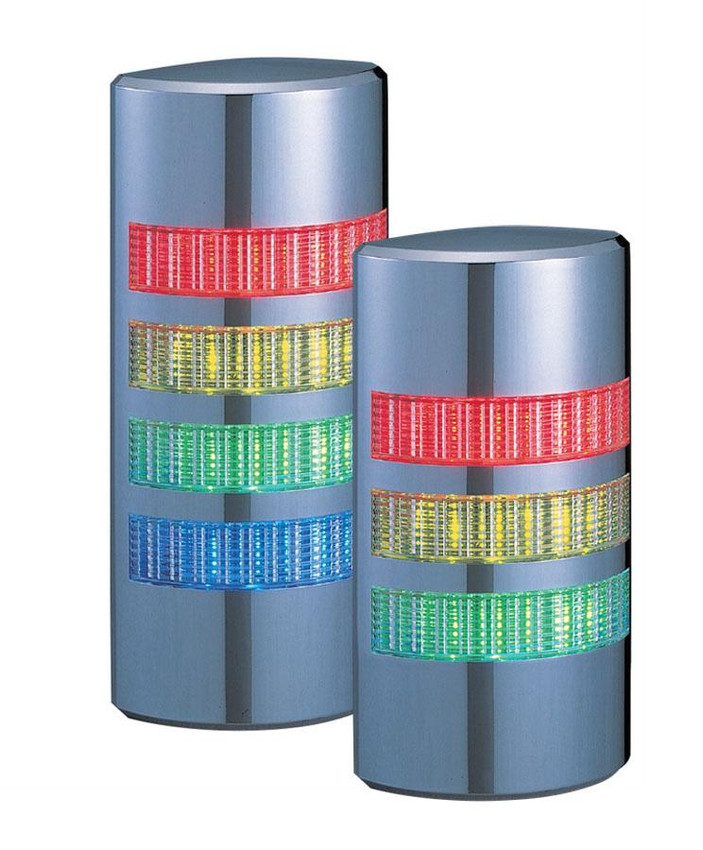

Our Patlite WE series is available in a chrome plated (WE) or ivory white (WEP) body color in 3 (WE-302), 4 (WE-402) or 5 (WE-502) tiers.

This series is 24VAC/DC and is available with continuous only lights or in a flashing/alarm (FB) option. The WE series is IP65 except in the FB model which is IP54.

The half-moon design gives you great visibility and a sleek look!

Marshall Wolf Automation is your authorized Patlite distributor.

Series Features Include:

• Clear vertical-cut lens for enhanced illumination over a wide perspective.
• Has an optional built-in audible alarm (FB type) with an output of 90dB (at 1m).
• Installation can be vertical or horizontal.
• Two body color selections of chrome plated or ivory white.
• Lens made of superior impact and heat resistant polycarbonate resin for superior durability and enhanced illumination.
• Both NPN and PNP Compatible for direct connection to a PLC (24V DC ONLY)
• Two lighting patterns of flashing and continuous lighting.
• Dust and water resistance rating of IP65 (except for FB type: IP54).
• Available colors are in Red, Amber, Green, Blue, and Clear/White.
• Has the CE mark and conforms to the requirements for the EC directive.
• Is a UL Recognized Component (File No. E215660).

• Patlite WE/WEP Signal Tower Datasheet
• Patlite WE/WEP Signal Tower Quick Specs
• Patlite WE/WEP Signal Tower Installation Manual
• Patlite General Product Catalog
