WEP-302FB-RYG

PATLITE was founded in 1947 and the original name was Sasaki Electric Corporation. The first product developed was a rotating warning light for patrol cars and the name PATLITE was created from 'patrol car' and 'light'.



Today PATLITE is a leading manufacturer of visual and audible signaling devices. Their products include signal towers, audible alarms, LED light bars, warning lights and network products.

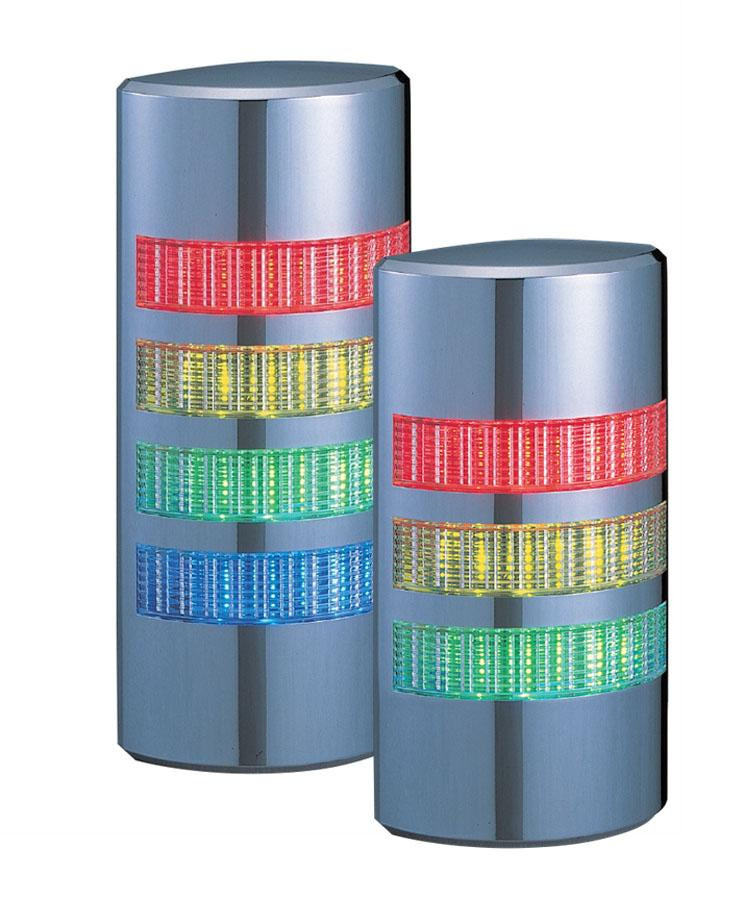

Series Features Include:

• Clear vertical-cut lens for enhanced illumination over a wide perspective.
• Has an optional built-in audible alarm (FB type) with an output of 90dB (at 1m).
• Installation can be vertical or horizontal.
• Two body color selections of chrome plated or ivory white.
• Lens made of superior impact and heat resistant polycarbonate resin for superior durability and enhanced illumination.
• Both NPN and PNP Compatible for direct connection to a PLC (24V DC ONLY)
• Two lighting patterns of flashing and continuous lighting.
• Dust and water resistance rating of IP65 (except for FB type: IP54).
• Available colors are in Red, Amber, Green, Blue, and Clear/White.
• Has the CE mark and conforms to the requirements for the EC directive.
• Is a UL Recognized Component (File No. E215660).
