Product image is representative only, please verify specifications.
LS7-502SFBWH-RYGBC+FB207
Alt: LS7 Series
$312.35

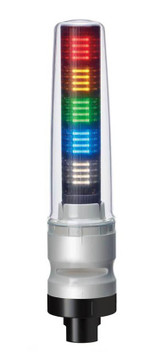

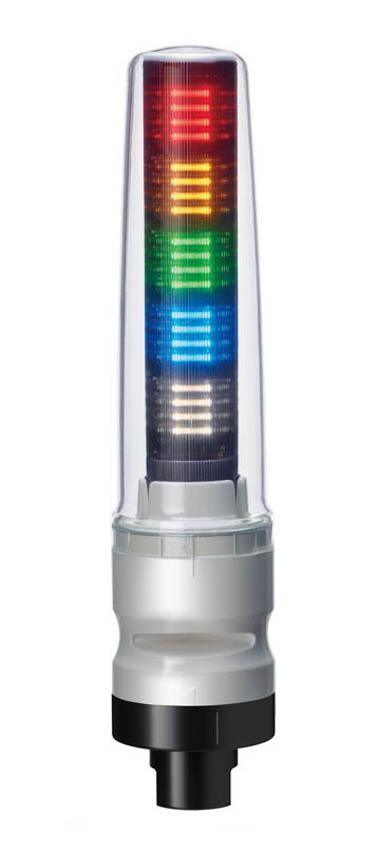

Light Tower Ø70mm RYGBC Silver, Steady/Flashing/Alarm LED, 24VDC, Direct Mount, Lead Wires, IP54
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Patlite has released their latest evolution of beacons that includes the SL, SK and SF series:
- SL flashing beacons - standard light functions with flash settings, available in 80, 100, 150mm
- SK rotating beacons - motorized rotation with efficient light output, available in 80, 100, 150mm
- SF multi-function beacons - LED animation including simulated rotation, available in 80, 100mm
These will replace: RS, RU, RH, SKE-A, WH, SKF-A, KP-A, SKL-A, SKLB, SKLS, RLE, RHE, PEW, PES, PSE, KHE, KPE, KLE, XPE, XME
Ones that will continue as they are: SKH-H, RLR, NE-A, LFH/LFK, REL
To achieve IP65 Rating:
- SKS series use SZW-102, SKH use SZW-103
- Cable type SF08 series use SZW-102, SF10 use SZW-103
- Cable type SL08 series use SZW-102, SL10 use SZW-103
Specifications
All - Approvals
See Spec
Color
R/Y/G/B/C
Light Tower Body Color
Silver/Chrome
Diameter
70mm
Light Tower Mounting
Direct/Surface Mount
Light Tower Number of Stacks
5 Light Stack
Light Tower Options
Buzzer/Audible Alarm, Continuous and/or Flashing
All - Specific Ratings
IP54
Series
LS7 Series
All - Voltage
24VDC
Alternate Part Number
LS7 Series
Warranty
1 Year
Weight
1
Features Include:
- 70mm signal tower
- IP69K rated for high pressure and high temperature washdown
- No exposed screws, shafts or other metal components
- ideal for sanitary environment applications!
- Shock resistant polycarbonate lens

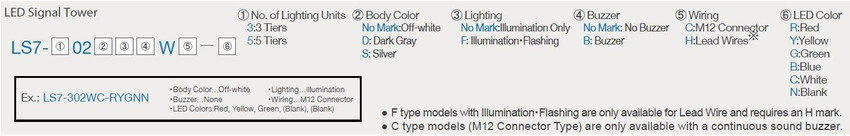

- 3-tier (LS7-302-9) or 5-tier (LS7-502-9)
- Off-white (blank), dark gray (D) or silver (S) body
- Choose continuous (blank) or continuous/flashing (F)
- No buzzer (blank) or buzzer (B)
- Wiring either M12 connector (C) or lead wire (H)
- 1/2" NPT mounting in natural white (N) or dark gray (D)
- LED colors in red, yellow, green, white, blue
- 24VDC
- Rated current: Red 20mA, yellow, blue, green, white, 30mA, buzzer, 40mA
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$30.46
Patlite
SZ-110D

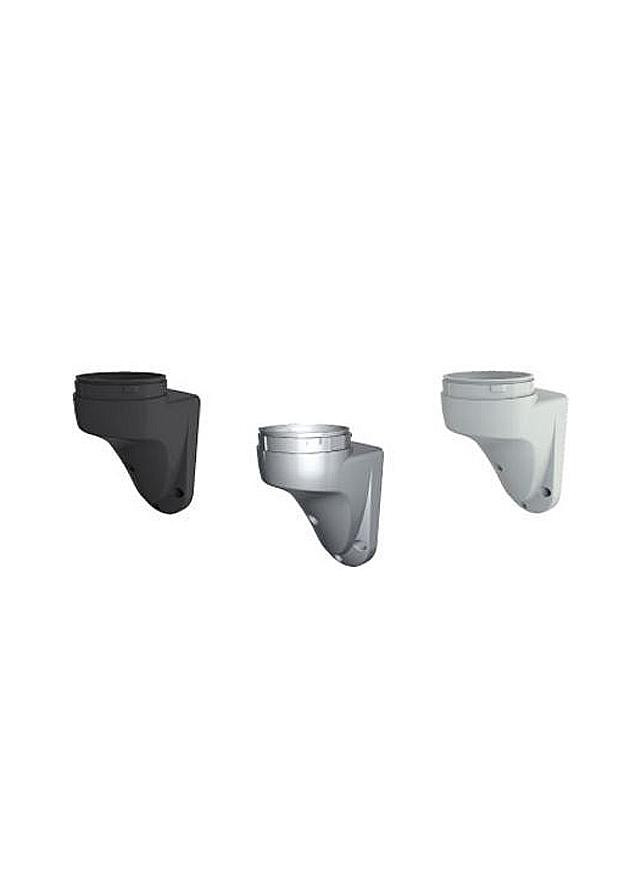

Wall Mount Bracket, Gray for LS7 SeriesLight Towers, Mount to Wall or Side of Machine
$35.29
Patlite
SZ-120-02
Cable, 2m 8 P Female M12 Quick Disconnect w/LeadsConnector & Cable for LS7 Series Light Towers
$60.88
Patlite
SZ-120-05
Cable, 5m 8 P Female M12 Quick Disconnect w/LeadsConnector & Cable for LS7 Series Light Towers
$85.59
Patlite
SZ-120-10
Cable, 10m 8 P Female M12 Quick Disconnect w/LeadsConnector & Cable for LS7 Series Light Towers
$127.02
Patlite
SZ-130D
Adapter, Gray, Changes Mounting Holes from 3 & 2Holes to 4 & 2 Holes, for LS7 Series Light Towers
$31.50
Patlite
SZ-130S
Adapter, Silver, Changes Mounting Holes from 3 & 2Holes to 4 & 2 Holes, for LS7 Series Light Towers
$35.29
Patlite
SZ-110S
Wall Mount Bracket, Silver for LS7 SeriesLight Towers, Mount to Wall or Side of Machine
$35.29
