LS7-302DWC-RYGNN+FB207
Alt: LS7 Series
$180.00
Light Tower Ø70mm, Red/Amber/Green, Gray, Steady, LED, 24VDC, Direct Mount, 8-pin M12 Conn., IP66/67
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description

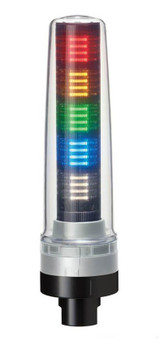

The Patlite LS7 series is a IP65 (IP54 with buzzer) rated light tower that has a smotth body and does not expose any screws, shafts or other metals.
The smooth surface design has no exposed screws, shafts or other metal components and the M12 quick-disconnect version ('C' in part number) significantly simplifies installation and can eliminate the need for a separate relay box.
The LED lights are sharper and more efficient than most signal tower designs! Choose from 3-tier or 5-tier models and an optional buzzer.
- 3-tier (LS7-302) or 5-tier (LS7-502)
- The LS7 series is rated IP65 without buzzer, if there is a buzzer the rating is IP54
- Off-white (blank), dark gray (D) or silver (S) body
- Choose continuous (blank) or continuous/flashing (F)
- No buzzer (blank) or buzzer (B)
- Wiring either M12 connector (C) or lead wire (H)
- 1/2" NPT mounting in natural white (N) or dark gray (D)
- LED colors in red, yellow, green, white, blue
- 24VDC
- Rated current: Red 20mA, yellow, blue, green, white, 30mA, buzzer, 40mA
Looking for IP69K? Our Patlite LS7-9 is an LED signal tower that is IP69K rated for high-pressure and high-temperature washdown applications.
Marshall Wolf Automation is your authorized Patlite distributor!
Specifications
All - Approvals
See Spec
Color
R/Y/G
Light Tower Body Color
Dark Gray
Diameter
70mm
Light Tower Mounting
Direct/Surface Mount
Light Tower Number of Stacks
3 Light Stack
Light Tower Options
LED
All - Specific Ratings
IP66, IP67
Series
LS7 Series
All - Voltage
24VDC
Alternate Part Number
LS7 Series
Warranty
1 Year
Weight
1
Features Include:
- 70mm signal tower
- IP69K rated for high pressure and high temperature washdown
- No exposed screws, shafts or other metal components
- ideal for sanitary environment applications!
- Shock resistant polycarbonate lens
- 3-tier (LS7-302-9) or 5-tier (LS7-502-9)
- Off-white (blank), dark gray (D) or silver (S) body
- Choose continuous (blank) or continuous/flashing (F)
- No buzzer (blank) or buzzer (B)
- Wiring either M12 connector (C) or lead wire (H)
- 1/2" NPT mounting in natural white (N) or dark gray (D)
- LED colors in red, yellow, green, white, blue
- 24VDC
- Rated current: Red 20mA, yellow, blue, green, white, 30mA, buzzer, 40mA
