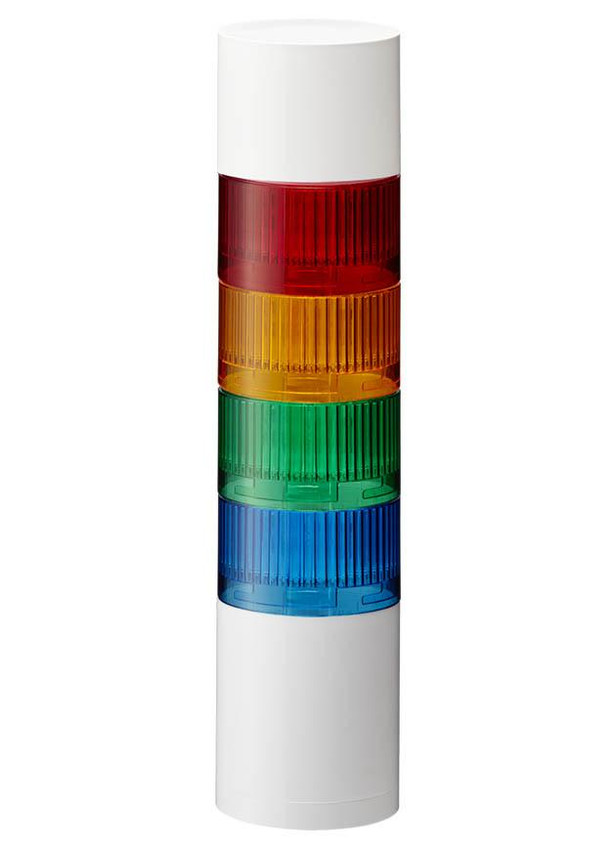

LR7-402WJBW-RYGB

 Our Patlite LR series is available in four diameters; 40, 50, 60 or 70mm.

• LR4 Series - 40mm, 24VDC or 100-240vAC
• LR5 Series - 50mm, 12VDC or 24VDC
  • Also available with manual control switch box (HSST-3M2)
• LR6 Series - 60mm, 24VDC or 100-240VAC

  • Multi-color LED module available, 7 colors in one (LR6-E-MZ)
  • Available with M12 connector, 1/2" NPT or 30mm through-hole mounting option
• LR7 Series - 70mm, 24VDC only

All LR light towers offer:

• Ultra-bright LEDs - brilliant, even light
• IP65 (IEC 60529), NEMA 4X, 13, indoor use
• Modular twist and lock design, easily customize and field configure LED units and sound modules
• Completely enclosed optional sound module maintains substantial water and dust protection, 360° sound!
• Sleek, smooth and rugged housing
• Four mounting options - direct, pole with L-bracket, pole with circular bracket, pole with folding pracket (off-white only)
• Available in off-white or silver bodies
• NPN/PNP transistor output (AC100-240V is NPN only)
• Operating ambient temperature -20°C to 50°C
• 2 year warranty
• The LR series replaced LCE-A, LCS-A, LE, LES, LU5, LME, LMS, LME and LU7 series

Product Features:

Operating Temperature

• -20 °C TO +50° C

Operating Humidity Range

• 90% RH or less, no condensation

Mounting Location

• Indoor Use

Sound Level

• Typ. 85dB

Need More Information?

• Patlite LR Series Quick Specs
• Patlite LR Series Brochure
• Patlite LR Series Flyer
• Patlite LR Series Complete Operation Manual
• Patlite LR Series Buzzer Specification Sheet
• Patlite LR Series Introduction Letter from Patlite
