$137.03
Product image is representative only, please verify specifications.
LS7-302WH-9N-RYGNN
Alt: LS7 Series
$315.90
Light Tower, Ø70mm, IP69K, White, 24VDC, Red/Amber/Green, Lead Wires, LED, Steady, Direct Mount
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Our Patlite LS7-9 is an LED signal tower that is IP69K rated for high-pressure and high-temperature washdown applications.
The smooth surface design has no exposed screws, shafts or other metal components and the M12 quick-disconnect version ('C' in part number) significantly simplifies installation and can eliminate the need for a separate relay box.
The LED lights are sharper and more efficient than most signal tower designs! Choose from 3-tier or 5-tier models and an optional buzzer.
- 3-tier (LS7-302-9) or 5-tier (LS7-502-9)
- Off-white (blank), dark gray (D) or silver (S) body
- Choose continuous (blank) or continuous/flashing (F)
- No buzzer (blank) or buzzer (B)
- Wiring either M12 connector (C) or lead wire (H)
- 1/2" NPT mounting in natural white (N) or dark gray (D)
- LED colors in red, yellow, green, white, blue
- 24VDC
- Rated current: Red 20mA, yellow, blue, green, white, 30mA, buzzer, 40mA
Marshall Wolf Automation is your authorized Patlite distributor!
Features Include:
- 70mm signal tower
- IP69K rated for high pressure and high temperature washdown
- No exposed screws, shafts or other metal components
- ideal for sanitary environment applications!
- Shock resistant polycarbonate lens
- 3-tier (LS7-302-9) or 5-tier (LS7-502-9)
- Off-white (blank), dark gray (D) or silver (S) body
- Choose continuous (blank) or continuous/flashing (F)
- No buzzer (blank) or buzzer (B)
- Wiring either M12 connector (C) or lead wire (H)
- 1/2" NPT mounting in natural white (N) or dark gray (D)
- LED colors in red, yellow, green, white, blue
- 24VDC
- Rated current: Red 20mA, yellow, blue, green, white, 30mA, buzzer, 40mA
Need More Information?
- Patlite LS7 Series Brochure
- Patlite LS7 Buzzer-Included Model Spec Sheet
- Patlite LS7 Buzzer-less Model Spec Sheet
- Patlite LS7 Instruction Manual
- Patlite General Product Catalog
Learn more about Patlite's LS7 LED Signal Tower here!
Read more about Light Towers and Patlite here!
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$28.24
Patlite
SZ-110
Wall Mount Bracket, White for LS7 SeriesLight Towers, Mount to Wall or Side of Machine
$35.29
Patlite
SZ-120-02

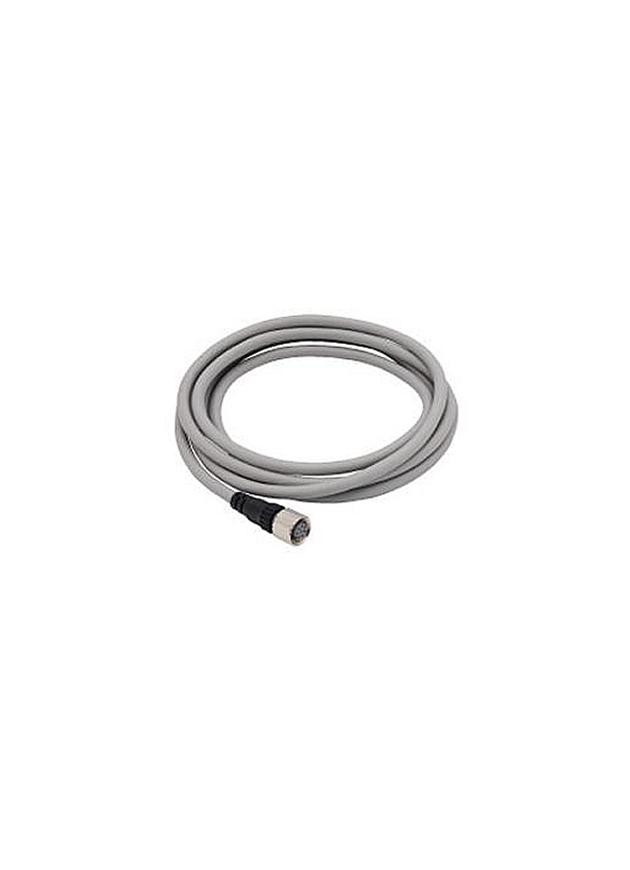

Cable, 2m 8 P Female M12 Quick Disconnect w/LeadsConnector & Cable for LS7 Series Light Towers
$60.88
Patlite
SZ-120-05
Cable, 5m 8 P Female M12 Quick Disconnect w/LeadsConnector & Cable for LS7 Series Light Towers
$85.59
Patlite
SZ-120-10
Cable, 10m 8 P Female M12 Quick Disconnect w/LeadsConnector & Cable for LS7 Series Light Towers
$127.02
Patlite
SZ-130

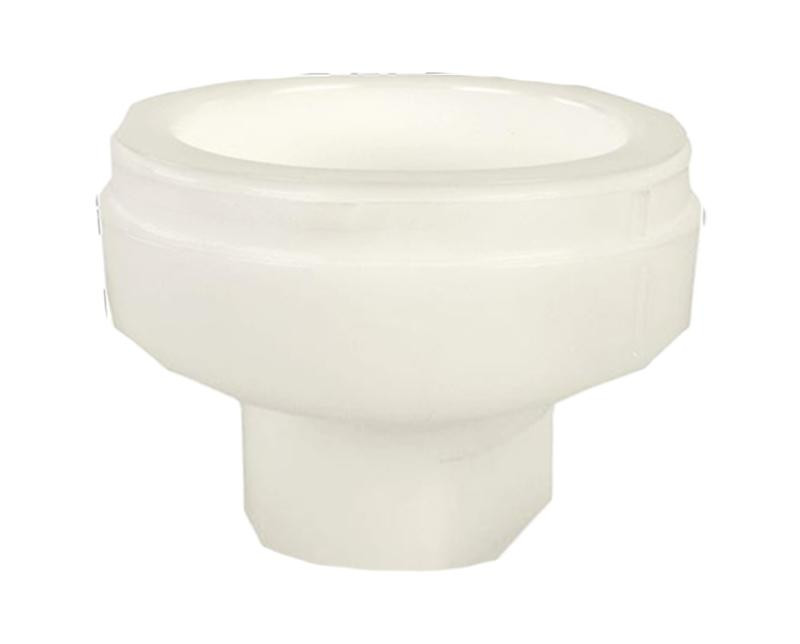

Adapter, White, Changes Mounting Holes from 3 & 2Holes to 4 & 2 Holes, for LS7 Series Light Towers
$35.29
