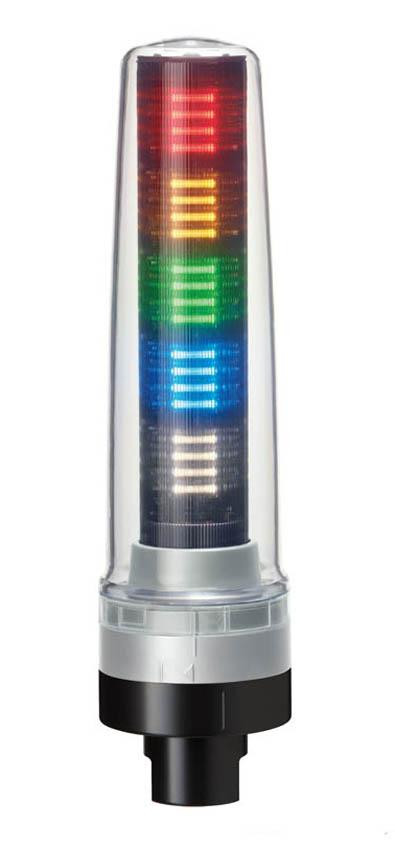

LS7-302DWC-RYGNN

The Patlite LS7 series is a IP65 (IP54 with buzzer) rated light tower that has a smotth body and does not expose any screws, shafts or other metals.

The smooth surface design has no exposed screws, shafts or other metal components and the M12 quick-disconnect version ('C' in part number) significantly simplifies installation and can eliminate the need for a separate relay box.

The LED lights are sharper and more efficient than most signal tower designs! Choose from 3-tier or 5-tier models and an optional buzzer.

• 3-tier (LS7-302) or 5-tier (LS7-502)
• The LS7 series is rated IP65 without buzzer, if there is a buzzer the rating is IP54
• Off-white (blank), dark gray (D) or silver (S) body
• Choose continuous (blank) or continuous/flashing (F)
• No buzzer (blank) or buzzer (B)
• Wiring either M12 connector (C) or lead wire (H)
• 1/2" NPT mounting in natural white (N) or dark gray (D)
• LED colors in red, yellow, green, white, blue
• 24VDC
• Rated current: Red 20mA, yellow, blue, green, white, 30mA, buzzer, 40mA

Looking for IP69K? Our Patlite LS7-9 is an LED signal tower that is IP69K rated for high-pressure and high-temperature washdown applications.

Marshall Wolf Automation is your authorized Patlite distributor!

Features Include:

• 70mm signal tower
• IP69K rated for high pressure and high temperature washdown
• No exposed screws, shafts or other metal components
• ideal for sanitary environment applications!
• Shock resistant polycarbonate lens
• 3-tier (LS7-302-9) or 5-tier (LS7-502-9)
• Off-white (blank), dark gray (D) or silver (S) body
• Choose continuous (blank) or continuous/flashing (F)
• No buzzer (blank) or buzzer (B)
• Wiring either M12 connector (C) or lead wire (H)
• 1/2" NPT mounting in natural white (N) or dark gray (D)
• LED colors in red, yellow, green, white, blue
• 24VDC
• Rated current: Red 20mA, yellow, blue, green, white, 30mA, buzzer, 40mA
