$137.03
LS7-502SFBWH-9D-RYGBC
Alt: LS7 Series
$435.88

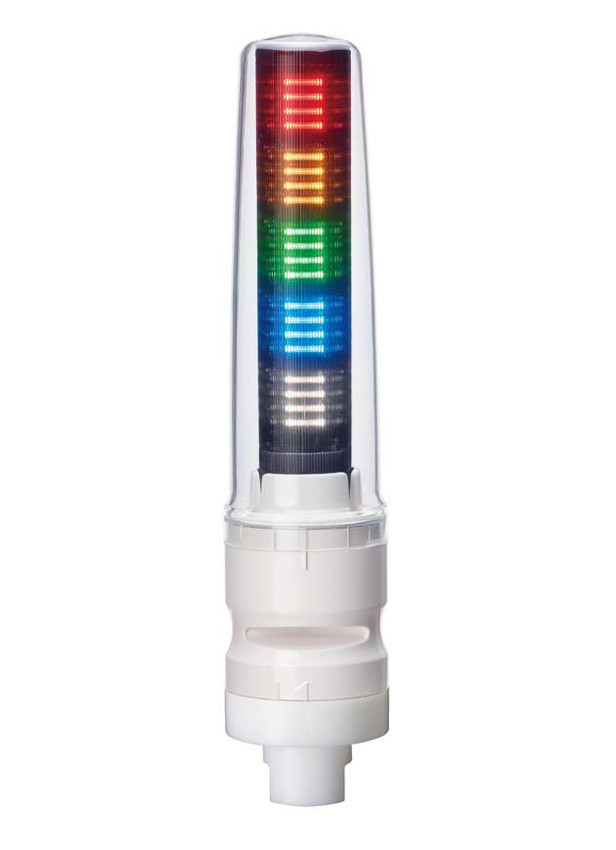

Light Tower, Ø70mm, Alarm, White, 24VDC, Red/Amber/Green/Blue/White, IP69K, Lead Wires, LED, Flashing/Steady, Direct Mount
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Patlite has released their latest evolution of beacons that includes the SL, SK and SF series:
- SL flashing beacons - standard light functions with flash settings, available in 80, 100, 150mm
- SK rotating beacons - motorized rotation with efficient light output, available in 80, 100, 150mm
- SF multi-function beacons - LED animation including simulated rotation, available in 80, 100mm
These will replace: RS, RU, RH, SKE-A, WH, SKF-A, KP-A, SKL-A, SKLB, SKLS, RLE, RHE, PEW, PES, PSE, KHE, KPE, KLE, XPE, XME
Ones that will continue as they are: SKH-H, RLR, NE-A, LFH/LFK, REL
To achieve IP65 Rating:
- SKS series use SZW-102, SKH use SZW-103
- Cable type SF08 series use SZW-102, SF10 use SZW-103
- Cable type SL08 series use SZW-102, SL10 use SZW-103
Features Include:
- 70mm signal tower
- IP69K rated for high pressure and high temperature washdown
- No exposed screws, shafts or other metal components
- ideal for sanitary environment applications!
- Shock resistant polycarbonate lens
- 3-tier (LS7-302-9) or 5-tier (LS7-502-9)
- Off-white (blank), dark gray (D) or silver (S) body
- Choose continuous (blank) or continuous/flashing (F)
- No buzzer (blank) or buzzer (B)
- Wiring either M12 connector (C) or lead wire (H)
- 1/2" NPT mounting in natural white (N) or dark gray (D)
- LED colors in red, yellow, green, white, blue
- 24VDC
- Rated current: Red 20mA, yellow, blue, green, white, 30mA, buzzer, 40mA
Need More Information?
- Patlite LS7 Series Brochure
- Patlite LS7 Buzzer-Included Model Spec Sheet
- Patlite LS7 Buzzer-less Model Spec Sheet
- Patlite LS7 Instruction Manual
- Patlite General Product Catalog
Learn more about Patlite's LS7 LED Signal Tower here!
Read more about Light Towers and Patlite here!
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$28.24
Patlite

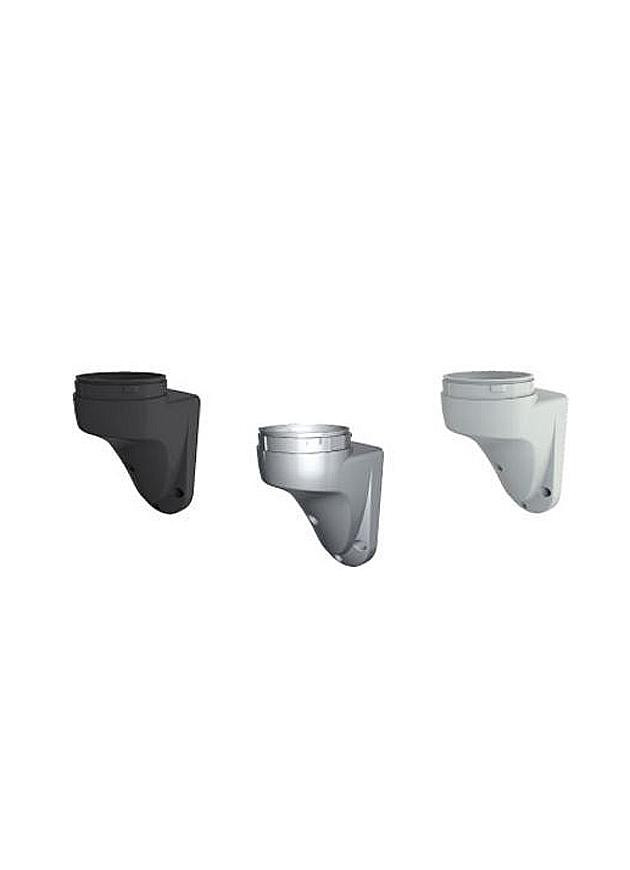

SZ-110
Wall Mount Bracket, White for LS7 SeriesLight Towers, Mount to Wall or Side of Machine
$35.29
Patlite
SZ-120-02
Cable, 2m 8 P Female M12 Quick Disconnect w/LeadsConnector & Cable for LS7 Series Light Towers
$60.88
Patlite
SZ-120-05
Cable, 5m 8 P Female M12 Quick Disconnect w/LeadsConnector & Cable for LS7 Series Light Towers
$85.59
Patlite
SZ-120-10
Cable, 10m 8 P Female M12 Quick Disconnect w/LeadsConnector & Cable for LS7 Series Light Towers
$127.02
Patlite

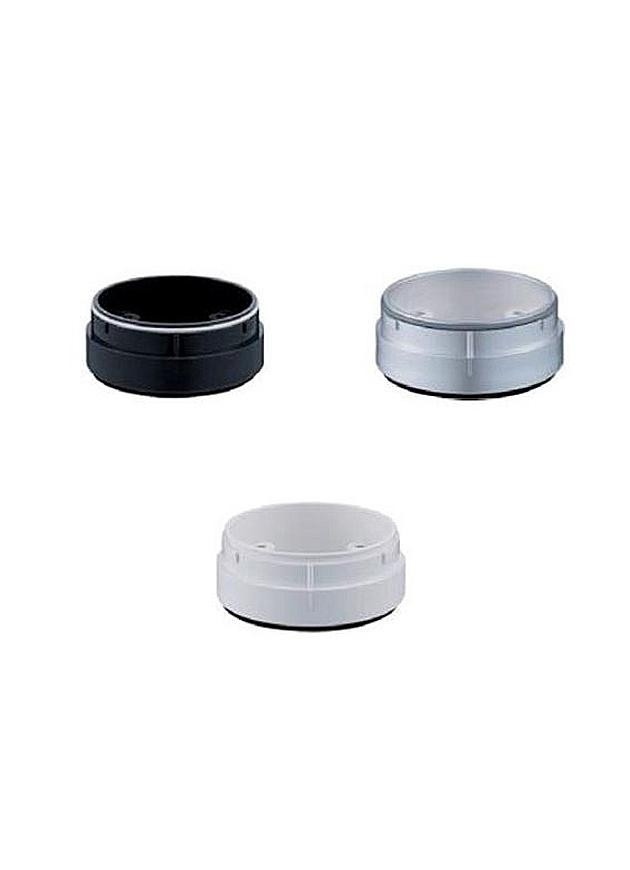

SZ-130
Adapter, White, Changes Mounting Holes from 3 & 2Holes to 4 & 2 Holes, for LS7 Series Light Towers
$35.29
