LA6-5DSNWB-POE
Alt: Programmable, PoE, Multi-Color
$647.65
Light Tower, Ø60mm, PoE, Buzzer, Ethernet, 5 Tier, Off White, LED, 21 Colors, Flashing/Steady, Desktop
- Weight:
- 3.50 LBS
- Minimum Purchase:
- 1 unit
Easily Find Your Enclosure Solution
Get expert guidance to select the right enclosure and compatible accessories, including subpanels, fans, filters, heaters, thermostats, air conditioning units, and heat exchangers.
Description

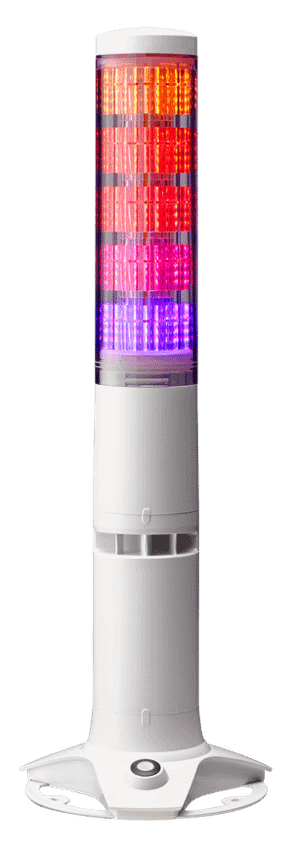

Our Patlite LA6-POE is a 60mm smart signal tower with PoE that is available in direct mount (LA6-5DTNWB-POE) or stationary/desktop type (LA6-5DSNWB-POE).
This light tower is Ethernet-enabled with PoE capability and is field programmable for any application!
This tower is packed with options and features 21 LED colors, 11 sounds, socket, Ethernet and Modbus/TCP.
Marshall Wolf Automation is your authorized Patlite distributor.
Specifications
Alternate Part Number
Programmable, PoE, Multi-Color
All - Approvals
See Spec
Color
Multi-Color
Light Tower Body Color
White/Ivory
Diameter
60mm
Light Tower Mounting
Base Mount
Light Tower Number of Stacks
5 Light Stack
Light Tower Options
Ethernet MODBUS TCP, LED, Modbus/TCP, Multi-Color LED, PoE (Power over Ethernet)
All - Specific Ratings
IP54
Series
LA6-POE Series
All - Voltage
24VDC
Warranty
1 Year
Weight
3.5
Quantity
2
Features Include:

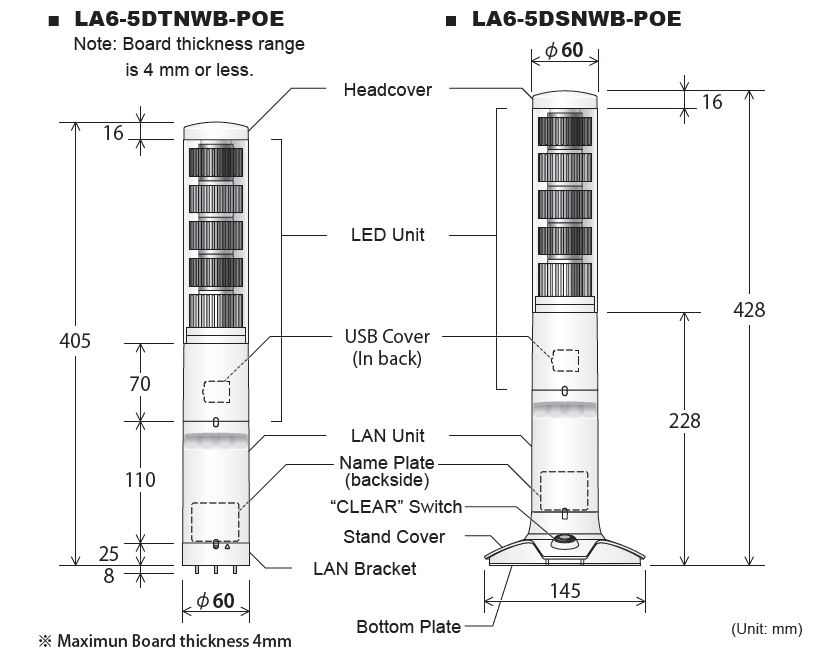

Dimensions
- 60mm Diameter
Operating Voltages
- 24V DC Power over Ethernet (PoE): 48V DC
Function Method
- Operational Method: Signal Wire Control or Command Control
Body Color
- Off-white or silver
Stackable Tiers
- 5 Tiers or 3 Tiers
Module Colors
- Signal Tower Mode: 9 Colors
- Smart Mode: 21 Colors
Audible Style
- 11 alarm sounds available
Conformity Standards
- EMC Directive
- RoHS Directive
- UL 508
- FCC
- KC
Downloads
- Patlite LA6-POE Series Signal Tower Short Form Instruction Manual
- Patlite LA6-POE Series Signal Tower Wiring Diagram
- Patlite LA6-POE Series Signal Tower Complete Operation Manual
- Patlite LA6-POE Series Signal Tower Direct Mount Specifications
- Patlite LA6-POE Series Signal Tower Stationary Mount Specifications
- Patlite Signaling Product General Catalog
