LA6-5DLJWN-RYGBC
Alt: Smart Tower, Programmable for 21 Colors!
$308.70
Light Tower, Ø60mm, LED, 24VDC, Beige, 5 Tier, Multiple Colors, Steady, Pole Mount
- Weight:
- 3.50 LBS
- Minimum Purchase:
- 1 unit
Description

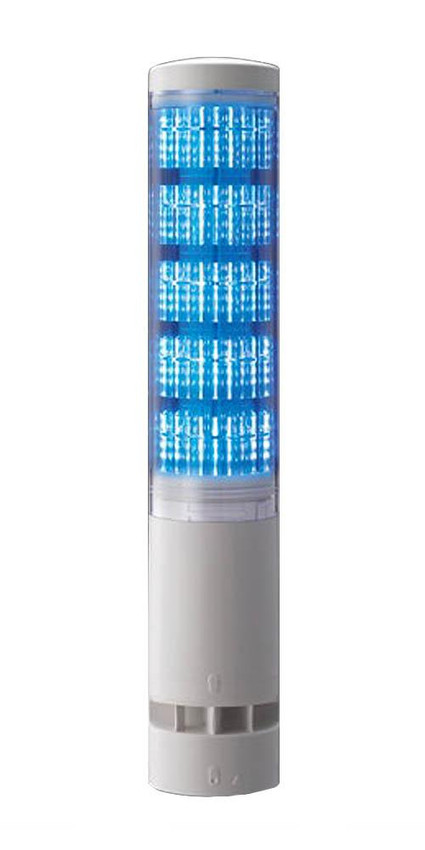

Our Patlite LA6 is a 60mm smart signal tower which can easily display multiple colors and combinations with simple programming.
This tower is packed with options and features 21 LED colors, 11 sounds, socket, Ethernet and Modbus/TCP.
Marshall Wolf Automation is your authorized Patlite distributor.
Specifications
Alternate Part Number
Smart Tower, Programmable for 21 Colors!
All - Approvals
See Spec
Color
R/Y/G/B/C
Light Tower Body Color
Beige/Cream
Diameter
60mm
Light Tower Mounting
Direct/Surface Mount
Light Tower Number of Stacks
5 Light Stack
Light Tower Options
Multi-Color LED
All - Specific Ratings
IP65
Series
LA6 Series
All - Voltage
24VDC
Warranty
1 Year
Weight
3.5
Features Include:
Dimensions
- 60mm Diameter
Operating Voltages
- 24V DC
- 100V - 240V AC ‚ØWJ Type Only
Operates in three different display modes
- Single Display
- Time-trigger Display
- Pulse-trigger Display
Body Style
- TN: Screwless Terminal
- LJ: Pole with Cable Connection
- WJ: Direct Mount with Cable Connection
Body Color
- Off-white
- Silver
Stackable Tiers
- 5 Tiers
- 3 Tiers
Module Colors
- Total of 4,960 possible colors
Audible Style
- 11 alarm sounds available
Protection Ratings
- IP 65
- IP54 with Alarm
Conformity Standards
- EMC Directive
- RoHS Directive
- UL 508
- FCC
- KC
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$18.53
$18.53
$22.94
$20.25
Patlite
SZP-004W
Upper Pole Bracket, Off-White, for LR6-USB to pass USB Cable through, Polycarbonate (Compatatible Models: LR6-USB, LR6-IL, LA6, LA6-POE, POLE-A21)
$26.47
$25.50
