Takex
SSXU20-T640
Light Curtain, Ultra-thin, Thru-Beam, 640mm Detection Width, w/3m Cable, IP65, NPN/PNP Selectable
$1,317.50
SSXU20-T400
Alt: SSXU20 Series
$901.85
Light Curtain, Ultra-thin, Thru-Beam, 400mm Detection Width, w/3m Cable, IP65, NPN/PNP Selectable
- Weight:
- 1.10 LBS
- Minimum Purchase:
- 1 unit
Description

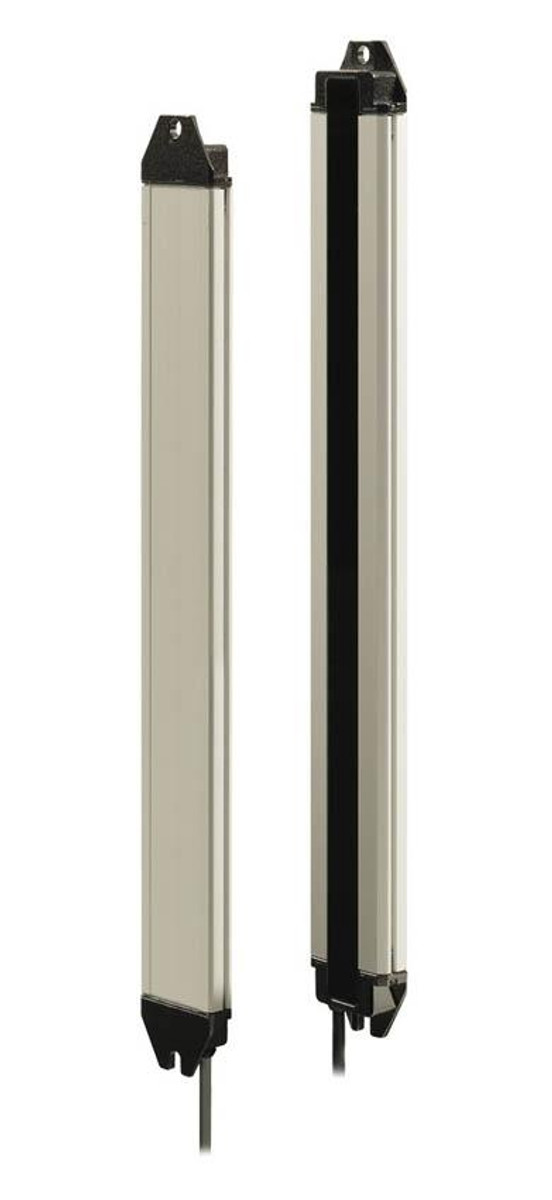

The SSXU20 series is an ultra compact light curtain sensor - the profile is only 9.9mm deep by 30mm across!
Other features:
- Through-beam detection
- Switchable between parallel beam and cross beam modes
- Detecting distance is 0-4m parallel, 0.5-4m cross
- 20mm light axis interval
- Available in 9, 13, 17, 21, 25, 29, 33 and 37 beams
- Light ON activated when beams are received, deactivated when a beam of any optical axis is blocked
- NPN and PNP output selectable
- CE, IP65
Marshall Wolf Automation is your authorized TAKEX distributor!
Specifications
Protection Height
See Spec
resolution
See Spec
Type of Product
Light Curtain
All - Voltage
24VDC
Warranty
1 Year
Alternate Part Number
SSXU20 Series
Series
SSXU20 Series
Weight
1.1
Features Include:
- Improved versatility while maintaining slim profile
- Ultra-thin light curtain sensor of only 9.9 mm in thickness
- Switchable between parallel beam and cross beam modes
- NPN or PNP output selectable
- Eight selections of detection width from 160 mm to 720 mm
