Takex
SSXU20-T640
Light Curtain, Ultra-thin, Thru-Beam, 640mm Detection Width, w/3m Cable, IP65, NPN/PNP Selectable
$1,313.79
SSXU20-T320
Alt: SSXU20 Series
$760.62
Light Curtain, Ultra-thin, Thru-Beam, 320mm Detection Width, w/3m Cable, IP65, NPN/PNP Selectable
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description

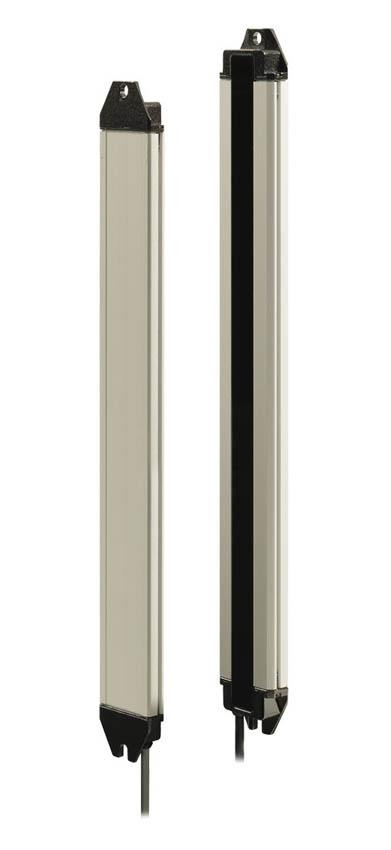

The SSXU20 series is an ultra compact light curtain sensor - the profile is only 9.9mm deep by 30mm across!
Other features:
- Through-beam detection
- Switchable between parallel beam and cross beam modes
- Detecting distance is 0-4m parallel, 0.5-4m cross
- 20mm light axis interval
- Available in 9, 13, 17, 21, 25, 29, 33 and 37 beams
- Light ON activated when beams are received, deactivated when a beam of any optical axis is blocked
- NPN and PNP output selectable
- CE, IP65
Marshall Wolf Automation is your authorized TAKEX distributor!
Features Include:
- Improved versatility while maintaining slim profile
- Ultra-thin light curtain sensor of only 9.9 mm in thickness
- Switchable between parallel beam and cross beam modes
- NPN or PNP output selectable
- Eight selections of detection width from 160 mm to 720 mm
Need More Information?
Learn More about Light Curtains Here!
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Takex
SSXU20-T480
Light Curtain, Ultra-thin, Thru-Beam, 480mm Detection Width, w/3m Cable, IP65, NPN/PNP Selectable
$1,037.20
Takex
SSXU20-T560
Light Curtain, Ultra-thin, Thru-Beam, 560mm Detection Width, w/3m Cable, IP65, NPN/PNP Selectable
$1,175.50
Takex
SSXU20-T400
Light Curtain, Ultra-thin, Thru-Beam, 400mm Detection Width, w/3m Cable, IP65, NPN/PNP Selectable
$898.91
Takex
SSXU20-T720
Light Curtain, Ultra-thin, Thru-Beam, 720mm Detection Width, w/3m Cable, IP65, NPN/PNP Selectable
$1,452.07
Takex
SSXU20-T240
Light Curtain, Ultra-thin, Thru-Beam, 240mm Detection Width, w/3m Cable, IP65, NPN/PNP Selectable
$649.98
Takex
SSXU20-T160
Light Curtain, Ultra-thin, Thru-Beam, 160mm Detection Width, w/3m Cable, IP65, NPN/PNP Selectable
$525.52
