50131408
Leuze

50131408

Alt: CSL505-T50-1150-M8, Non-Cancellable / No Returns

$570.79

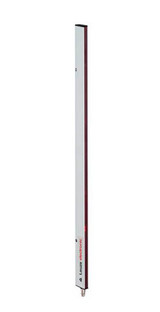

Light Curtain Transmitter, IP65, 10 x 1,230 x 27mm, Throughbeam, 24 Beams, Minimum Object Diameter 52.5mm, Use with CSL505-R50-1150-M8 Receiver, NCNR

Weight:
1.04 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Leuze actually began as a textile mill in Southern Germany in 1861. In 1963 the decision was made to found Leuze Electronic and develop sensors for the company's textile machines. At the time they had no idea that they would develop into the successful international company they are today!

Leuze has an extensive range of sensors including measuring, safety, identifications and switching.

Their U.S. Headquarters is located in Duluth, Georgia.

Features Include:

  • Operating principle: Throughbeam principle
  • Supply voltage (UB): 18 - 30 VDC
  • Device type: Transmitter
  • Application: Precise object detection
  • Operating range: Guaranteed operating range
  • Operating range: 0.3 - 5 m
  • Measurement field length: 1,150 mm
  • Number of beams: 24 Piece(s)
  • Beam spacing: 50 mm
  • Light source: LED, Infrared
  • Wavelength: 860 nm
  • Minimum object diameter: 52.5 mm
  • Function: Voltage supply, Deactivation input
  • Type of connection: Connector
  • Thread size: M8
  • Type: Male
  • Material: Metal
  • No. of pins: 4 -pin
  • Design: Cubic
  • Dimension (W x H x L): 10 mm x 1,230 mm x 27 mm
  • Metal housing: Aluminum
  • Lens cover material: Plastic Housing color: Silver
  • Type of fastening: Through-hole mounting
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Leuze

50130850

Connection Cable, 5m Black PVC Cable, 30VAC/DC, Connection 1: M8 Female Axial 4-pin Connector, Connection 2: Open End, 4 Conductors, Chemical Resistant, -5 to +80°C Flexible Use, -30 to +80°C Stationary Use, IP65/67

$17.00

Leuze

50130851

Cable, M8, 4-Pin, Right-Angle, PUR Coated, 100m, NCNR

$25.00

Leuze

50110274

Connection Cable, M8, 4-Pin, Female, 10m, NCNR

$43.00

Leuze

50131352

Light Curtain Receiver, IP65, 10 x 1.230 x 27mm, .3 to 5m Operating Range, Use with CSL505-T50-1150-M8 Transmitter, NCNR

$569.00
