ESN-T8
Alt: ESN Series
$356.80
Light Curtain, Thru-Beam, NPN, Red LED, 5m Range, Ø30
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Light Curtain Sensor, Through Beam, NPN, Red LED, 5000mm, 30dia,
Features Include:
- Master/Slave operation for installation of up to 2 adjacent units
- Auto Sensitivity Compensation (from set point) to offset lens soiling
- Capable of detecting objects 30mm or larger (opaque)
- Terminal board connection ensures open space at writing
- Detection Distance: 5m or less
- Detection Method: Through Beam
- Detection Object: Opaque dia.30mm or more
- Beam Interval: 20mm
- Number of Light Axes: 8
- Detecting Width: 140mm
- Power Supply: 12 - 24V DC ±10% / Ripple 10% or less
- Current Consumption: 100mA or less
- Output Mode: Open collector output Rating: Sink current 100mA (30VDC) or less
- Operation Mode: Activated when light beams of all axes are received (deactivated when light beam of any axis is blocked)
- Response Time: 7ms or less
- Light Source: Infrared LED (850nm)
- Light Receiving Element: Photo IC
- Material: Case: ABS / Indicator window: acrylic
- Connection: Attached Cable (Outer dimension: dia.4.3mm) Cable: 3 m, Cable: With five 0.2 mm2 5 cores, gray (transmitter) or black (receiver) covering
- Auxiliary Functions: Automatic sensitivity compensation, Anti Mutual Sensitivity feature for adjacent installation, Output short circuit protection
Indicator:
- Transmitter - Green LED: Power Indicator | Red LED: Operation Indicator
- Receiver: Green LED: Stable light reception indicator | Red LED: Operation Indicator
Environmental Factors:
- Ambient Light: 10,000 lx or less
- Ambient Temperature: -10 - +55°C (non-freezing)
- Ambient Humidity: 35 - 85%RH (non-condensing)
- Vibration: 10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions
- Shock: 500 m/s2 / 3 times each in 3 directions
- Dielectric Withstanding: 1000VAC for 1 minute / between entire live part and case
- Insulation Resistance: 500 VDC, 20 MΩor higher
Need More Information?
Learn More about Light Curtains Here!
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$500.62
Carlo Gavazzi
IA18ESN08UC
Inductive Proximity Sensor, Ø18mm, Short Non-Flush, NAMUR, 8mm Range, 2m Cable, IP67
$82.40
Carlo Gavazzi
IA30ESN15UC
Inductive Proximity Sensor, Ø30mm, Short Non-Flush, NAMUR, 15mm Range, 2m Cable, IP67
$91.20
Carlo Gavazzi

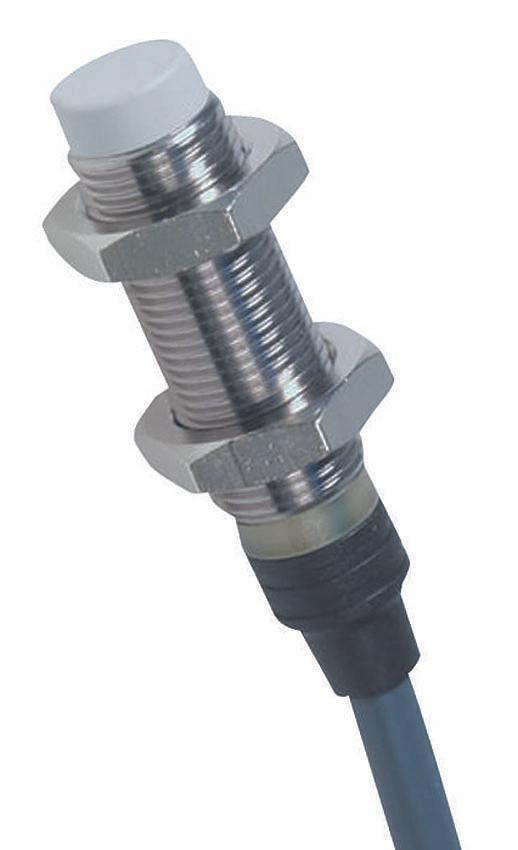

IA12ESN04UC
