LR6-E-RZ

 Our Patlite LR series is available in four diameters; 40, 50, 60 or 70mm.

• LR4 Series - 40mm, 24VDC or 100-240vAC
• LR5 Series - 50mm, 12VDC or 24VDC
  • Also available with manual control switch box (HSST-3M2)
• LR6 Series - 60mm, 24VDC or 100-240VAC

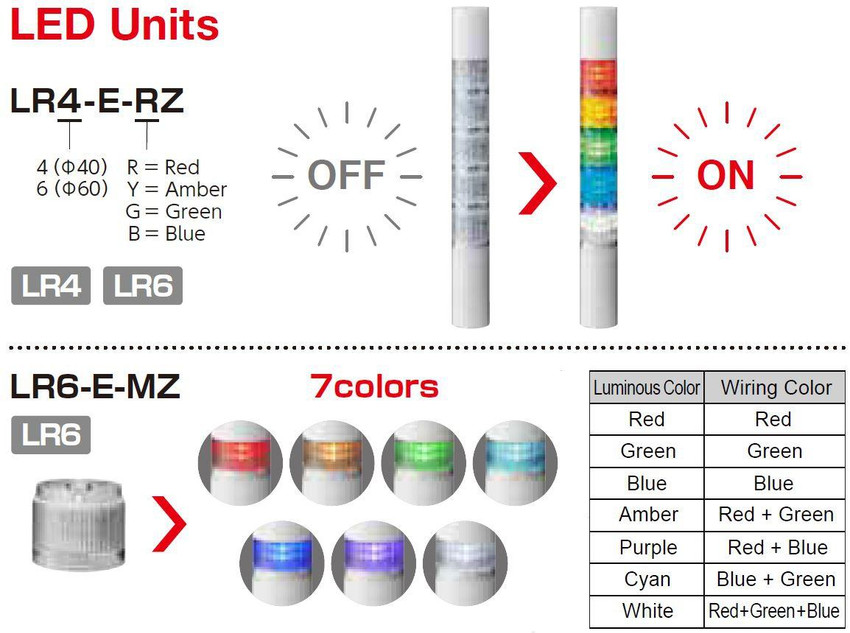

  • Multi-color LED module available, 7 colors in one (LR6-E-MZ)
  • Available with M12 connector, 1/2" NPT or 30mm through-hole mounting option
• LR7 Series - 70mm, 24VDC only

All LR light towers offer:

• Ultra-bright LEDs - brilliant, even light
• IP65 (IEC 60529), NEMA 4X, 13, indoor use
• Modular twist and lock design, easily customize and field configure LED units and sound modules
• Completely enclosed optional sound module maintains substantial water and dust protection, 360° sound!
• Sleek, smooth and rugged housing
• Four mounting options - direct, pole with L-bracket, pole with circular bracket, pole with folding pracket (off-white only)
• Available in off-white or silver bodies
• NPN/PNP transistor output (AC100-240V is NPN only)
• Operating ambient temperature -20°C to 50°C
• 2 year warranty
• The LR series replaced LCE-A, LCS-A, LE, LES, LU5, LME, LMS, LME and LU7 series

Patlite introduces their WD Wireless Data Series!

Modernize your workplace with Patlite's WD wireless data acquisition system - receive real time sttatus alerts straight from the factory floor to any computer!

The system consists of a Patlte light tower + transmitter (see below) which will send information to the receiver (WDR-LE-Z2-PRO):

• For the LR4 series - use wireless data transmitter WDT-4LR-Z2, will also need receiver WDR-LE-Z2-PRO
• For the LR5 series - use wireless data transmitter WDT-5LR-Z1, will also need receiver WDR-LE-Z2-PRO
• Two options for the LR6 series:
  • use WDT-6LR-Z1, will also need receiver WDR-LE-Z2-PRO
  • or use WDT-6LR-Z1-PRO - will also need receiver WDR-LE-Z2-PRO and WDB-D80S-PRO base

Features Include:

• Operating Voltages: 5V DC ±5% (USB Bus Powered, Rated voltage is compliant with USB 2.0 Standard)
• Rated Current Consumption: 500mA (max)
• Ambient Operating Temperature: -20°C to +50°C
• Ambient Operating Humidity: 90% RH or less, no condensation
• LED Unit Control: Light on, pattern on (4 types)
• Functions: LED units and Buzzer is controlled by a PC via USB interface
• Controlled by PC
• Custom programming made easy with our free software library (DLL)
• Open architecture makes it possible to control the device with other operating systems such as Linux
• Supports HID class. No exclusive drivers necessary
• Supports solid color, clear-globe, and 7-in-1 multi-color LED units
• High water and dust protection

Buzzer:

• Operation: Sound on, sound pattern (4 types)
• Frequency: 13 types
• Sound Pressure: Typ.80dB (1m from the front of the buzzer aperture / at 2349.3 Hz), Sound reduction (Buzzer switch: Low): approximately -10dB

Protocols:

• USB 2.0
• Software Library (DLL) compatible with Windows® 7, Windows® 8, Windows® 8.1 (excluding Windows® 8RT and 8.1RT) and Windows® 10
• Compatible with open-source software operating systems such as Linux

Protection Ratings:

• IP65 (IEC 60529), except when pole or wall mounted.
• NEMA Type 4X, 13
