Werma
695-300-55
LED Perm Signal Tower, 24VDC, Red/Yellow/Green, Clean Room, Continuous Tone, CleanSIGN, IP69K, 85dB, Bracket Mount
$579.68
695-010-55
Alt: 695.010.55, 69501055
$856.71
LED Tower, Continuous/Flash/EVS, Continuous Tone, IP67/69K, CleanSIGN, 85dB, Base Mount, Multi Color
- Weight:
- 1.75 LBS
- Minimum Purchase:
- 1 unit
Description
The Kompakt 37 series from Werma is a pre-assembled, 37.5mm diameter LED stack light.
- Steady/continuous light
- 24VAC/DC
- Available with (699) or without (698) buzzer (85db)
- Available in ClassicLOOK (black body, colored lens) or DesignLOOK (silver body with clear lens, will show color when lit)
- The clear lens (DesignLOOK) is great for direct sunlight or bright environments
- IP65
- Available with cable or M12 connection
- The Kompakt 37 stack light series now has cULus approval!
Marshall Wolf Automation is your authorized Werma distributor! In-house tech support is readily available.
Need a different light tower? Search all of our options here!
Specifications
Alternate Part Number
695.010.55, 69501055
All - Approvals
cULus
Color
Multi-Color
Diameter
See Spec or N/A
Light Tower Mounting
Direct/Surface Mount
Light Tower Options
No Options
All - Specific Ratings
cULus (CSA/UL), IP65
Series
See Specs
All - Voltage
24VDC
Warranty
3 Years
Weight
1.75
Features Include:
- LED Signal Tower for use in cleanroom applications (Fraunhofer IPA approval) and the food industry (EHEDG approval)
- Permanent light and additional light effects
- 7 colours slectable
- Colour distribution can be set and adjusted via switch as required
- Complete illumination in one colour possible (can be triggered externally)
- Integrated, high-output buzzer (85 dB)
Connection
- screwable connection max. 1.5 mm²
Sound output
- 85dB
Temperature range
- -30°C...+50°C
Current Consumption
- 270 mA

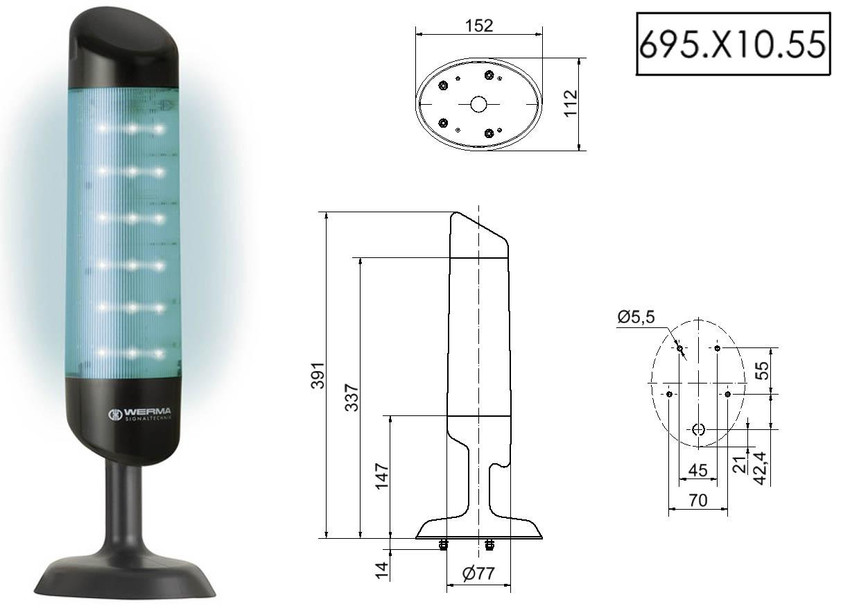

Width
- 112 mm
Height
- 390 mm
Depth
- 152 mm
