LF3D-SB2S2
Alt: LUMIFA LED Lighting, LF3D Rugged Series, Replaced IDEC LF1D Series, Non-Cancellable, No Returns
$280.90

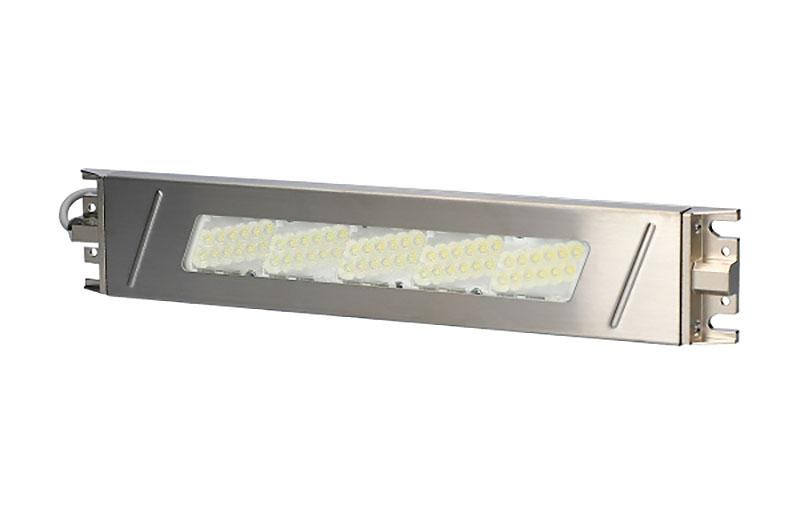

LED Light Strip, Standard Light Distribution, Surface Mount, Side Connection M8 Connector, LUMIFA LED Lighting, LF3D Rugged Series , NCNR
- Weight:
- 2.00 LBS
- Minimum Purchase:
- 1 unit
Description
IDEC has a full line of automation products, safety components, switches and much more. They are well known for their HMI, relays, e-stops and safety products.
Founded in 1945 as Izumi Shokai, their US office, IDEC Corporation, was opened in 1975. Marshall Wolf Automation has been a long-time authorized, stocking distributor for IDEC.
Features Include:
- Style: Uniform light source / slim type
- Light distribution: Standard, Diffused
- Rated voltage: 24V DC
- Operating voltage range: 21.6 to 26.4V DC
- Rated Power (typ.) (at rated voltage): 9.2W
- Illumination color: Cool white
- Color temp. (typ.): 5700K
- Luminous Flux (typ.): 1700 lm
- Shock resistance (damage limits): 1000m/s2
- Operating temperature –30 to +55°C (no freezing)
- Operating relative humidity 45 to 85%RH (no condensation)
- Operating atmosphere No corrosive gas
- Light source life (*1): 50,000 hours (The illumination duration in which the brightness maintains a minimum of 70%) (Ta = 25ºC, 45%RH max.)
- Degree of protection Surface mount: IP65, IP67, IP67G, IP69K
Technical Information:
