LD30ETBI10BPM5IO
Carlo Gavazzi

LD30ETBI10BPM5IO

Alt: Minimum Order 5 Pieces, Price per Piece, LaserIO-LinkPlugIP69K

$210.40

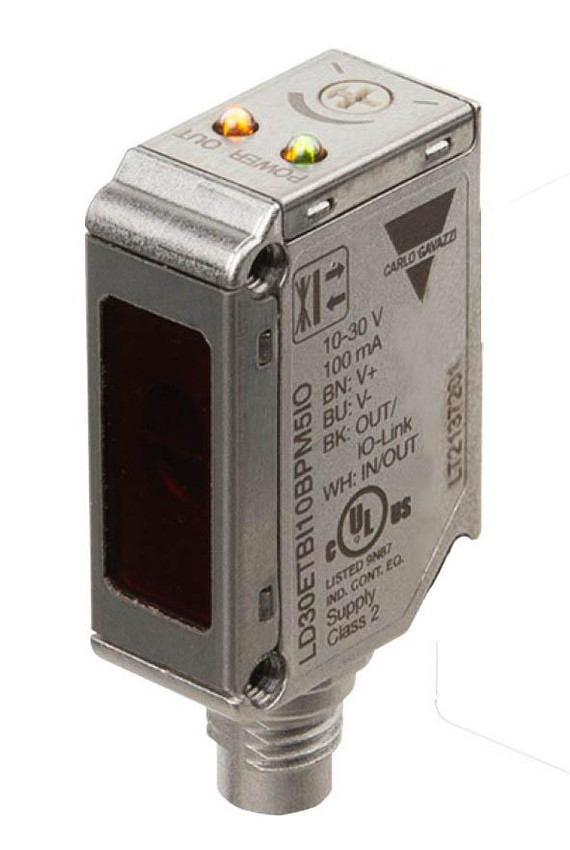

Photoelectric Time of Flight Sensor, Steel HousingPlug Connection, Laser BGS IR 1M SS IO-Link, IP69K

Weight:
0.25 LBS
Minimum Purchase:
5 units
Adding to cart… The item has been added

Have you heard about our rewards program, Pack Perks? Learn all about it here!

Description

Carlo Gavazzi LD30 is a series of photoelectric laser sensors with integrated IO-link communications.

These laser sensors feature excellent background suppression based on the Time of Flight principle. Ideal for locations that need a compact housing!

This series is available in IP67 plastic (LD30CNB) or IP69K stainless AISI316L (LD30ETB) housings.

The LD30 can operate in IO-link environments where senseing performance needs to be monitored and logged.

Marshall Wolf Automation is our authorized Carlo Gavazzi distributor!

Series Features Include:

  • IP69K Stainless steel housing or IP67 Plastic housing
  • Two separate switching signal channels (SSC)
  • Long range background suppression
  • Adjustable sensing distance between 50 to 1000mm via potentiometer or IO-Link
  • Modes of operation: Single point, two point and window
  • Temperature alarms and logging functions
  • Logic gates functionality: AND, OR, X-OR and Gated Set Reset Flip-Flop
  • Operating temp.: -25°C to +50°C (-13° to +122°F)
  • Time Delay Functionality: On delay, off delay, one shot leading or trailing edge with values between 1ms to 32,767 minutes
  • Two independent outputs fully configurable: NPN/PNP, Push-pull, external input or remote teach NO or NC
  • 2 m PVC cable or M8-plug
  • IO-Link communication V 1.1
