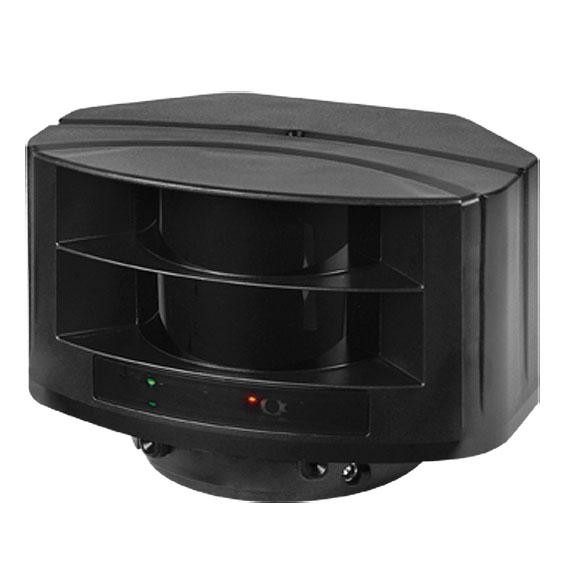

LSE-4A5R2
$2,433.00
Laser Scanner, Class 1, 24VDC, 75 Watt, 905nm, Motion/Presence, 4 Channel, 56x56m Detect, Cable
- Minimum Purchase:
- 1 unit
Description
The LSE scanner offers 4 separate laser beam channeels that can be activated individually or simultaneiously depending on your requirements!
This series uses time-of-flight (ToF) using infrared lasers to accurately detect object presence within a 5.6m x 5.6m detection area (90°).
The unit can also set concentrated monitoring areas and non-detection areas!
Features Include:
- Maximum Pulse Output Power: 75W
- Power Consumption: Max. 8W
- Response Time: Typ. 20 to 80ms+monitoring time
- Angular Resolution: 0.4°
- Aperature Angle: 90°
- Object Reflectivity: Min. 2%
- Scanning Mode: Motion and presence
- Monitoring Zone: 0.3×0.3m to 5.6×5.6m (object reflectivity: at approx. 10%)
- Installation Laser Scanner Angle: -45 , 0 , 45°
- Installation Bracket Rotation Angle: -5 to 5°
- Installation Bracket Tilt Angle: -3 to 3°
- Front Contamination: Normal operation with max. 30% contamination of one material
- Communication Interface: Ethernet
- Cable, Power I/O: Ø5mm, 8-wire, 5m (AWG 26, core diameter: 0.16mm, number of cores: 7, insulator out diameter: Ø1mm)
- Cable, Ethernet: Ø5mm, 4-wire, 3m, shielded cable (AWG 26, core diameter: 0.16mm, number of cores: 7, insulator out diameter: Ø1mm)
Input:
- [H]: min. 8VDC (max. 30VDC ), [L]: max. 3VDC
- [H] operates as output test mode and outputs obstacle detection output and error status output
Output:
- PhotoMOS relay output: 2 (obstacle detection output, error status output)
- Galvanic isolation, non-polarity
- 30VDC / 24VAC, max. DC80mA (resistive load)
- Output resistance: 30Ω
- Switching time: t on=5ms, t off=5ms
Minimum Size of the Scanning Target:
- At detection distance of 3m: approx. W2.1×H2.1×L2.1cm
- At detection distance of 5m: approx. W3.5×H3.5×L3.5cm
- Object reflectivity: 90% (at Kodak Gray card R-27
