KSR5050ZDHF
Alt: KSR Series
$180.58

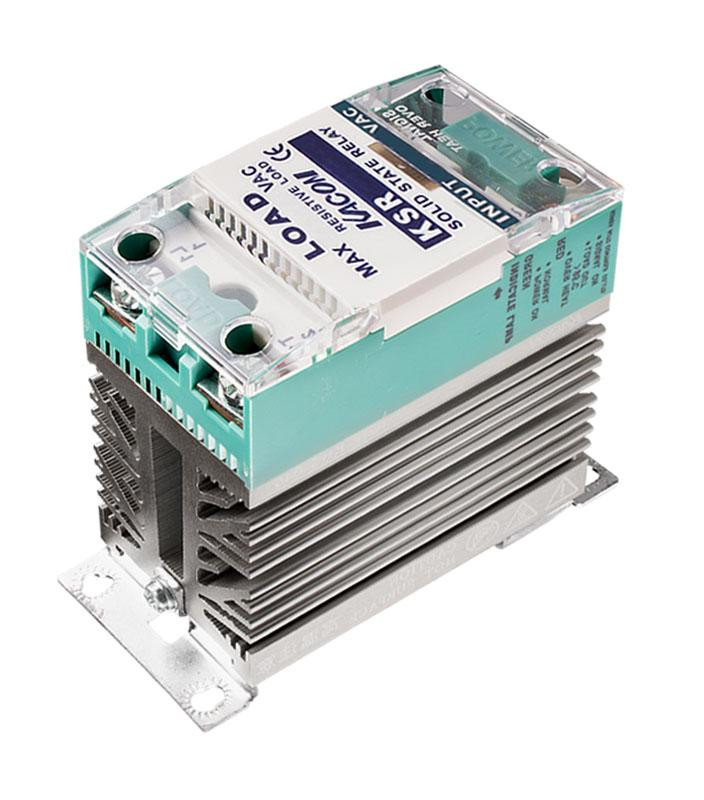

SSR with Heatsink and Fan, Single Phase, Input 4-32VDC, 50 Amp (50A), Load Voltage 90-480VAC, Zero Crossing, Over Temperature Alarm, Solid State Relay, KSR Series
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
KACON is a Korean manufacturer for a full line of switches and control components. They work with many international brands and are sold through key distributors around the world.
Their products are readily available from Illinois and they have very competitive pricing.
Specifications
Amp Rating
50 Amp
Control Voltage
4 to 32VDC
Operating Voltage
280VAC
Output Switching
Zero Crossing
Phase
Single Phase
All - Specific Ratings
See Spec
Type of Relay
SSR w/Heatsink
Warranty
3 Years
Alternate Part Number
KSR Series
Series
KSR Series
Weight
0.25
Features Include:
- Rated Load Voltage AC: 440V (50/60Hz)
- Input Voltage: 24VDC(4-32V)
- Input Voltage Range AC: 90-480V (50/60Hz)
- Load Current Range: 0.5A - Rated Current @ Ambient Temp of 25°C
- Peak Voltage: 1,200V
- Heatsink Type: Heatsink + Fan
- Slim type single phase SSR
- LED indicator of the control input status
- Over heat alarm output of SSR with connector cable
- Heatsink integrated SSR available
- NPN Open Collector
