Kacon
KSR5040ZAH

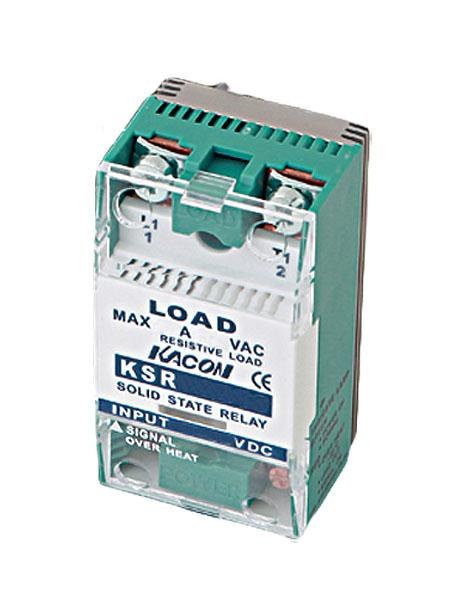

SSR with Heatsink, Single Phase, Input 90-240VAC, 40 Amp (40A), Load Voltage 90-480VAC, Zero Crossing, Over Temperature Alarm, KSR Series
$81.98
Product image is representative only, please verify specifications.
KSR5040ZA
Alt: KSR Series
$65.86
SSR, Single Phase, Input 90-240VAC, 40 Amp (40A), Load Voltage 90-480VAC, Zero Crossing, Over Temperature Alarm, KSR Series
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
KACON is a Korean manufacturer for a full line of switches and control components. They work with many international brands and are sold through key distributors around the world.
Their products are readily available from Illinois and they have very competitive pricing.
Features Include:
- Rated Load Voltage AC: 440V (50/60Hz)
- Input Voltage: 220VAC(90-240V 50/60Hz)
- Input Voltage Range AC: 90-480V (50/60Hz)
- Load Current Range: 0.5A - Rated Current @ Ambient Temp of 25°C
- Peak Voltage: 1,200V
- Heatsink Type: Mount
- Slim type single phase SSR
- LED indicator of the control input status
- Over heat alarm output of SSR with connector cable
- Heatsink integrated SSR available
- NPN Open Collector
Technical Information:
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Kacon
KSR5040ZAHF
SSR with Heatsink and Fan, Single Phase, Input 90-240VAC, 40 Amp (40A), Load Voltage 90-480VAC, Zero Crossing, Over Temperature Alarm, Solid State Relay, KSR Series
$94.51
