Kacon
KSC-2015ZAHF

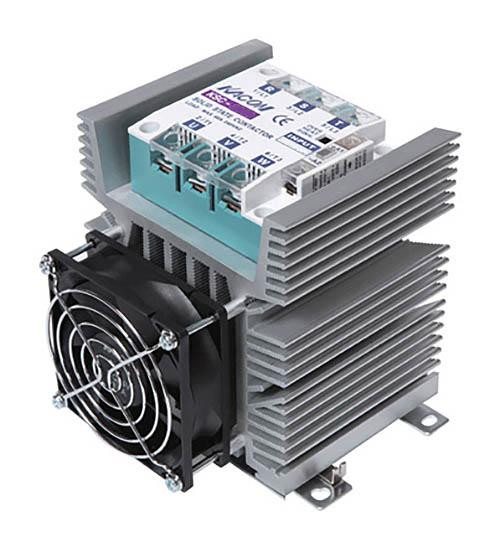

SSR with Heatsink and Fan, Three Phase, Load Voltage 90-240VAC, 15 Amp (15A), Input 90-240VAC, Zero Crossing, Over Temperature Alarm, 80 x 80mm, Solid State Relay, KSC Series
$174.59
KSC-2015ZAH
Alt: KSC Series
$140.35
SSR with Heatsink, Three Phase, Load Voltage 90-240VAC, 15 Amp (15A), Input 90-240VAC, Zero Crossing, Over Temperature Alarm, 80 x 80mm, Solid State Relay, KSC Series
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Configure Your Optimal AC Drive Solution
Build a complete solution with expert guidance on AC drives and compatible components including motors, circuit breakers and protection equipment
Description
Kacon three phase solid state relays offers a cost-effective, readily available option.
The KSC Series features include:
- 80x80mm
- Three phase SSR
- Available standard, with heatsink (H) or with heatsink and fan (HF)
- Available from 15 to 80 amp
- Zero cross
- Over temperature alarm
- Built-in monitoring and protection - overheating prevention switch and overheating output terminal
- IP20 clip cover
Specifications
Amp Rating
See Spec
Control Voltage
See Spec
Operating Voltage
See Spec
Output Switching
Zero Crossing
Phase
Three Phase
All - Specific Ratings
See Spec
Series
KSC Series
Type of Relay
Hockey Puck
Warranty
3 Years
Alternate Part Number
KSC Series
Weight
0.25
