Kacon
KMSR-DS0204

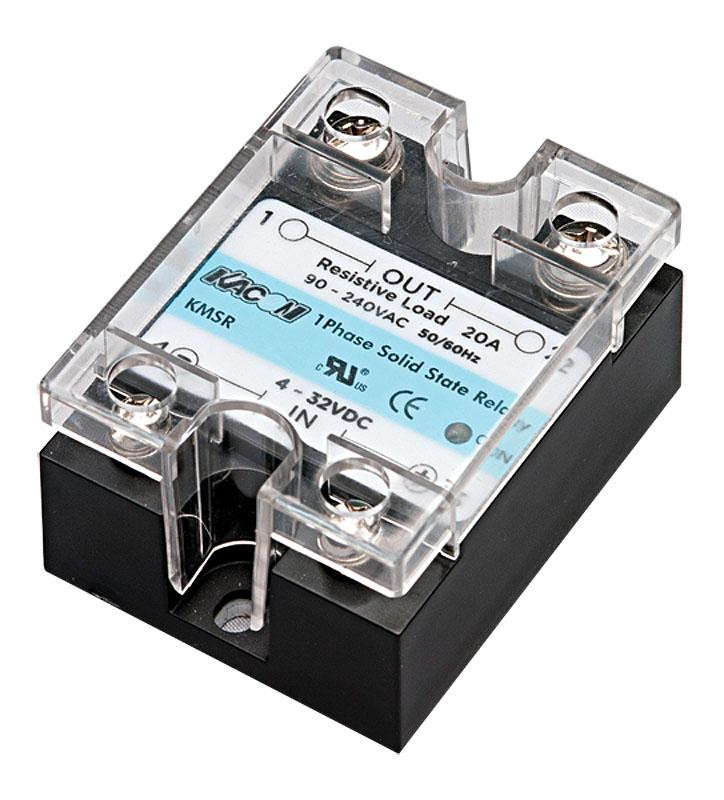

SSR, Hockey Puck, Single Phase, Input 4-32VDC, 20 Amp (20A), Load Voltage 90-480VAC, Zero Crossing, Solid State Relay, KMSR Series
$26.94
KMSR-DS0404
Alt: KMSR Series
$30.30
SSR, Hockey Puck, Single Phase, Input 4-32VDC, 40 Amp (40A), Load Voltage 90-480VAC, Zero Crossing, Solid State Relay, KMSR Series
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
The KMSR series is a cost-effective hockey puck style solid state relay that is available in single or three phase.
Features Include:
- Rated Input Control Voltage: 4-32VDC
- Input Current: 3 - 35mA Maximum
- Rated Output Load Voltage: 90 - 480VAC
- Peak Output Voltage: 1200V
- Insulation Resistance: 100MΩ/500VDC (btwn Terminal & Case)
- Dielectric Strength: 2500VAC(50/60Hz 1minute)
- Vibration Resistance: 10-55Hz, amplitude: 1.5mm,x,y,z each axis 2 hours
- Shock Resistance: 100m/s²,s,y,z each axis 3times
- LED indicator of the control input status
- Clip cover of IP20 touch protection
Technical Information:
