Kacon
KMSR-DS0402
SSR, Hockey Puck, Single Phase, Input 4-32VDC, 40 Amp (40A), Load Voltage 90-240VAC, Zero Crossing, Solid State Relay, KMSR Series
$28.90
KMSR-DS0302
Alt: KMSR Series
$25.57
SSR, Hockey Puck, Single Phase, Input 4-32VDC, 30 Amp (30A), Load Voltage 90-240VAC, Zero Crossing, Solid State Relay, KMSR Series
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description

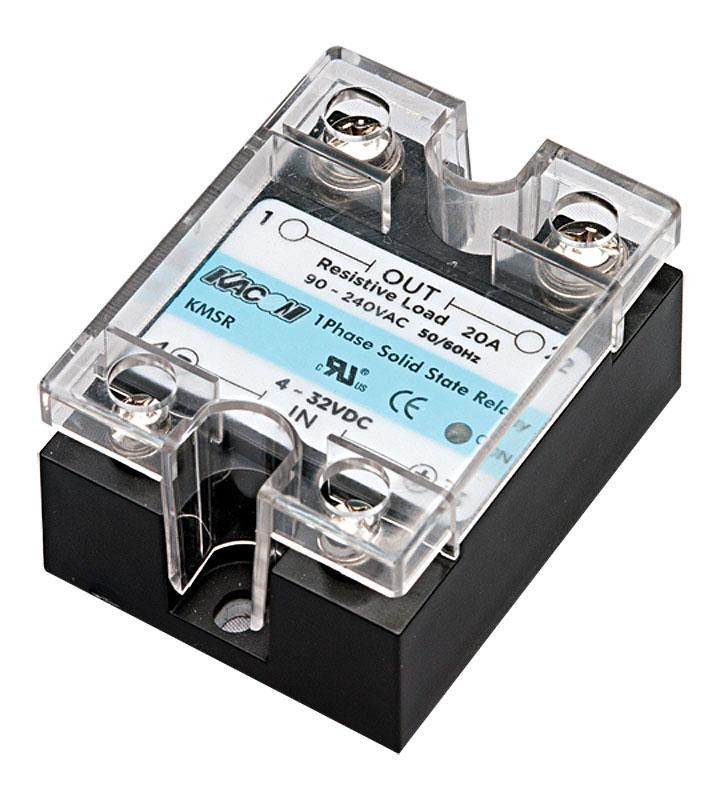

The KMSR series is a cost-effective hockey puck style solid state relay that is available in single or three phase.
Features Include:
- Rated Input Control Voltage: 4 -32VDC
- Input Current: 3 - 35mA
- Pick-up Voltage: 3VDC Minimum
- Drop-out Voltage: 1.5VDC Maximum
- Rated Output Load Voltage: 90 - 2400VAC
- Peak Output Voltage: 600V
- Frequency: 47-63 Hz
- Output Leakage Current (Maximum): 15mA
- Minimum Switching Current: 1A
- Pick-up/Drop-out Time: 1/2 cycle+1ms Maximum
- Insulation Resistance: 100MΩ/500VDC (btwn Terminal & Case)
- LED indicator of the control input status
- Clip cover of IP20 touch protection
Technical Information:
