Available Now! 161157376
Available Now! (1 in stock)
Schmersal

161157376

Alt: AZ15ZVRK-M20 or AZ 15ZVRK-M20

$103.00

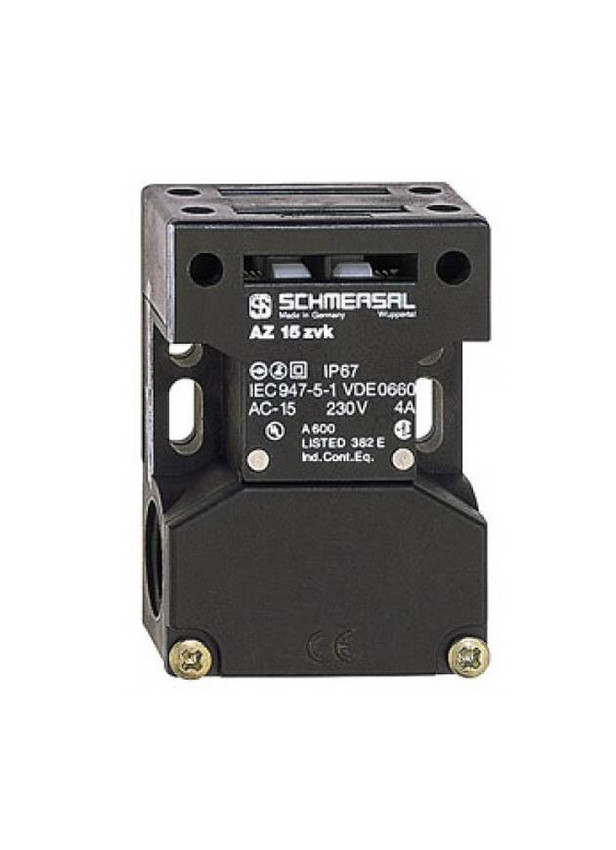

Safety Switch with Separate Actuator, Double Insulated, Long Life, Universal Coding, 1NC, Slow Action, 3 Cable Entries, M20 x 1.5, Screw Terminals, Thermoplastic Housing, -30 to +80°C Ambient Temperature, 52 x 75 x 30mm (WHL), IP67. Actuato

Weight:
0.25 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Schmersal has a wide range of safety interlock switches with separate actuators:

AZ15 Series:

  • Plastic enclosure
  • 52mm x 75mm x 30mm
  • Large wiring compartment
  • Slotted holes for adjustment, circular holes for location

AZ16 Series:

  • Thermoplastic enclosure
  • 52mm x 90mm 30mm
  • Large wiring compartment
  • Slotted holes for adjustment, circular holes for location

AZ16ZI Series:

  • Above, however, coding level 'High' according to ISO 14119

AZ17 Series:

  • Thermoplastic enclosure
  • Small body
  • 8 actuating planes

AZ17ZI Series:

  • Above, however, coding level 'High' according to ISO 14119



  • Thermoplastic enclosure
  • Double-insulated
  • Long life
  • 52 mm x 75 mm x 30 mm
  • Multiple coding
  • Large wiring compartment
  • High level of contact reliability with low voltages and currents
  • Slotted holes for adjustment, circular holes for location
  • Insensitive to soiling
  • 3 cable entries M 16 x 1.5
