KER3100UL98 Y/R
Alt: UL98 Series
$1,242.78

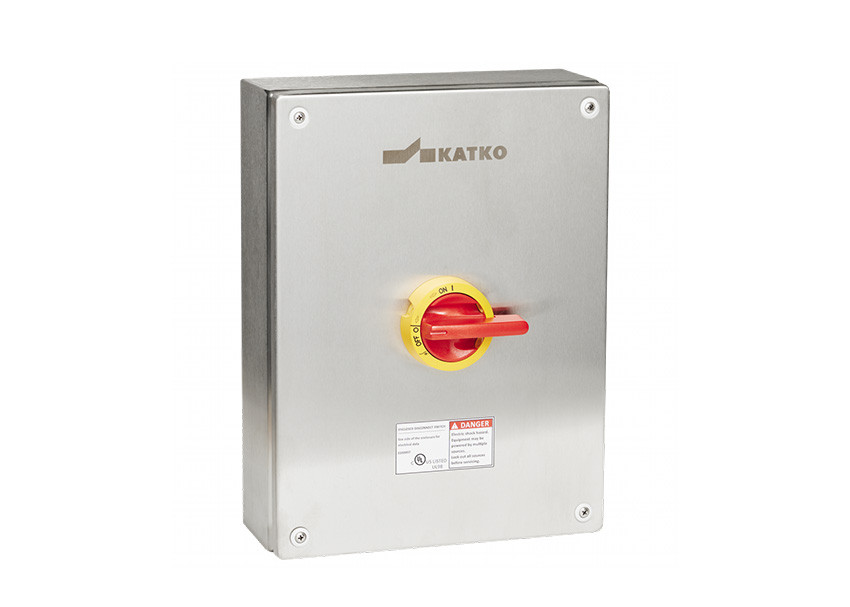

UL98 Disconnect Switch, SS, 3-Pole, 100A, 600VAC, H02, Yellow/Red Handle
- Weight:
- 20.54 LBS
- Minimum Purchase:
- 1 unit
Description
Altech offers a complete line of UL98 open and enclosed disconnect switches!
- Enclosed switches are available in plastic, sheet metal and stainless steel enclosures
- Every design is lockable in the OFF position
- Switching mechanism speed is independent of the operator
- Silver contacts give safe and durable operation
- Accessories (available under accessory tab) include 4th/neutral pole, auxiliary switches, shafts, door interlock handles and touch protectors
UL98 disconnect switches are rated as a branch circuit disconnect switch.
You can learn more from our blog 'UL489 vs UL98 - When and Where to Apply'.
Features Include:
- General Purpose Current: 100 A
- Maximum Voltage: 600V AC
- Short Circuit Withstand Rating/Fuze Size and Type: 50 kA/100 A Class J
- Terminal Size Acceptability (Cu only, 75°C): 8-1/0 AWG
Horsepower Rating/HP:
- 1 Phase/120V AC: 5 HP
- 1 Phase/240V AC: 10 HP
- 3 Phase/240V AC: 25 HP
- 3 Phase/480V AC: 50 HP
- 3 Phase/600V AC:75 HP
