027906

Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.



Founded by Emil Euchner in 1940, Euchner remains a family owned company.

Series Features Include:

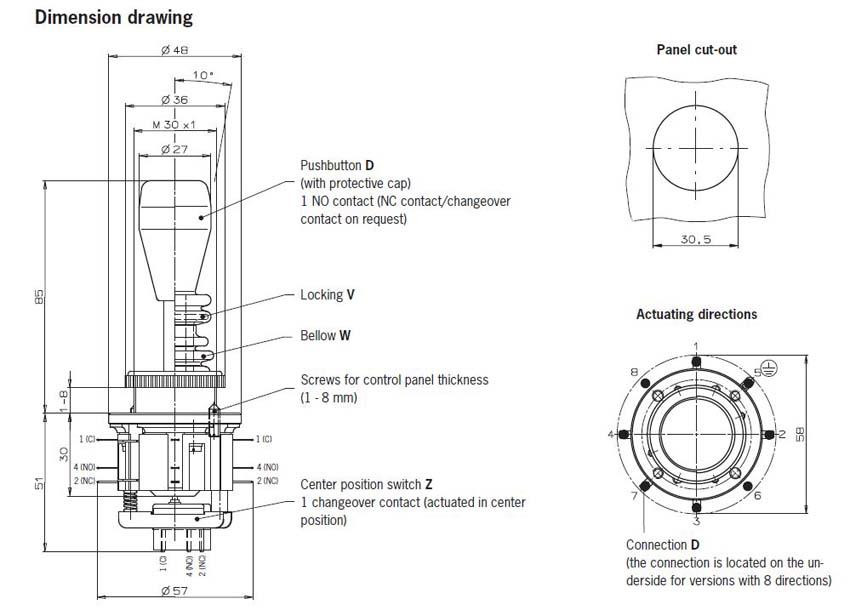

• Front panel installation according to IEC 947-5-1 D30
• Pushbutton with actuating directions 1-4
• One changeover contact with tab connector 2.8 x 0.5 IEC 760 for each actuating direction
• Interlocking in center position
• Bellows
• Actuating side with/without bellow: IP 65
• Switching current (at 24V): min. 12 mA
• Switching voltage: min. 10 V
• Connection: Tab connector 2.8x0.5 IEC760
• Weight Approx.: 0.2 kg
• Mounting type: IEC 947-5-1 D30
• Actuating directions: 4
• Number of monitoring contacts: 4
• Switching principle: Changeover contact C, IEC 947-5-1
• Rated impulse withstand voltage Uimp: 2.5 kV
• Rated insulation voltage Ui: 250 V
• Utilization category AC 15: 230V 4A
• Utilization category DC 13: 24V 2A
• Switching voltage: DC 10 - 50 V
• Contact: Silver alloy
• Material: Housing: thermoplastic/aluminum, Switching lever: stainless steel, Bellows: elastomer, black

Technical Information:

• Euchner Joystick Switches Catalog
