Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Series Features Include:

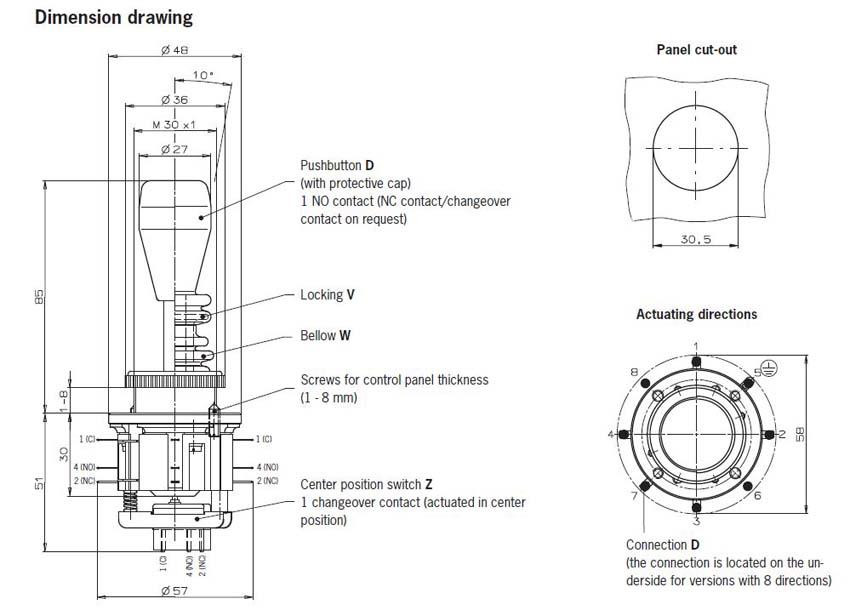

Front panel installation according to IEC 947-5-1 D30
One changeover contact with tab connector 2.8 x 0.5 IEC 760 for each actuating direction
Locking in central position
Actuating side with/without bellow: IP 54
Contact material: Silver alloy
Weight Approx.: 0.17 kg
Switching principle changeover contact C IEC 947-5-1
Connection: Tab connector 2.8x0.5 IEC760
Number of monitoring contacts: 4
Actuating directions: 4
Utilization category AC 15: 230V 4A
Utilization category DC 13: 24V 2A
Rated insulation voltage Ui: 250 V
Rated impulse withstand voltage Uimp: 2.5 kV
Switching voltage min.:10 V
Switching current: (at 24V) min.12 mA
Material: Housing: thermoplastic/aluminum, Switching lever: stainless steel, Bellows: elastomer black
