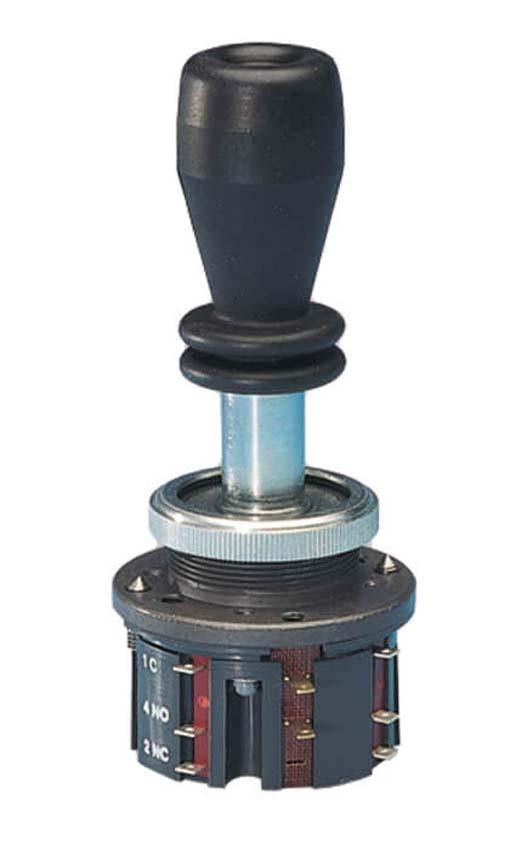

Description
Series Features Include:
- Front panel installation according to IEC 947-5-1 D30
- Switch with two actuating directions
- Two changeover contacts with tab connector 2.8 x 0.5 IEC 760 for each actuating direction
- Locking in central position
- Bellows
- Actuating side with/without bellow: IP 65
- Contact material: Silver alloy
- Weight Approx.: 0.17 kg
- Connection: Tab connector 2.8x0.5 IEC760
- Number of monitoring contacts: 4
- Actuating directions: 2
- Utilization category AC 15: 230V 4A
- Utilization category DC 13: 24V 2A
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2.5 kV
- Switching voltage min.:10 V
- Switching current (at 24V): min.12 mA
- Material: Housing: thermoplastic/aluminum, Switching lever: stainless steel, Bellows: elastomer black
Technical Information:
