Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.

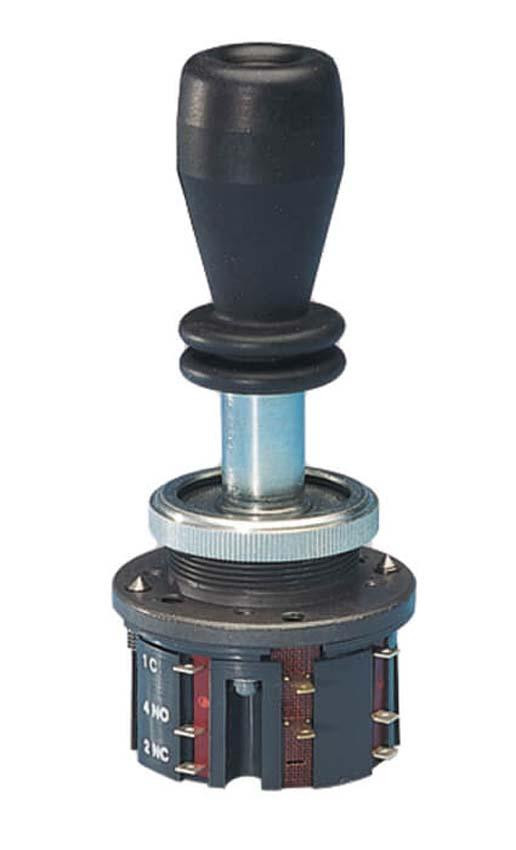

Series Features Include:
Front panel installation according to IEC 947-5-1 D30
1 to 8 actuating directions with spring return switches or combined
One changeover contact with tab connector 2.8 x 0.5 IEC 760 for each actuating direction
Center position switch
Pushbutton in handle
Actuating side with/without bellow: IP 65
Weight Approx.: 0.17 kg
Connection: Tab connector 2.8x0.5 IEC760
Actuating directions: 4
Switching principle: 1 contact
Switching voltage: DC 10 - 50 V
Utilization category AC 15: 230V 4A
Utilization category DC 13: 24V 2A
Material: Housing: thermoplastic/aluminum, Switching lever: stainless steel, Bellows: elastomer black
