000246

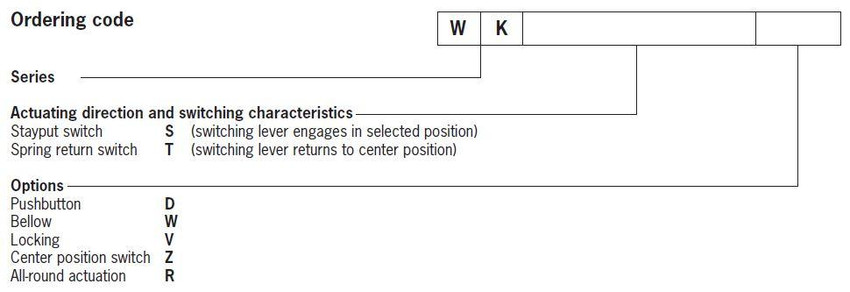

Alt: 246, WKS1234DV
$330.13
Joystick, Front Panel Installation According to IEC 947-5-1 D30, Switch with Actuating Directions 1-4, One Changeover Contact with Tab Connector 2.8 x 0.5 IEC 760 for Each Actuating Direction, Central Position Locking, Pushbutton in Handle
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Series Features Include:
- Front panel installation according to IEC 947-5-1 D30
- 1 to 8 actuating directions with spring return switches or combined
- One changeover contact with tab connector 2.8 x 0.5 IEC 760 for each actuating direction
- Center position switch
- Pushbutton in handle
- Actuating side with/without bellow: IP 54
- Weight Approx.: 0.17 kg
- Connection: Tab connector 2.8x0.5 IEC760
- Number of monitoring contacts: 4
- Switching principle: 1 contact
- Switching contact: 1 x NO contact (NC contact/changeover contact on request)
- Switching principle: Snap-action contact element, design ES 584
- Switching voltage: DC 10 - 50 V
- Utilization category AC 15: 230V 4A
- Utilization category DC 13: 24V 2A
- Material: Housing: thermoplastic/aluminum, Switching lever: stainless steel, Bellows: elastomer black
Technical Information:
