Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.



Founded by Emil Euchner in 1940, Euchner remains a family owned company.

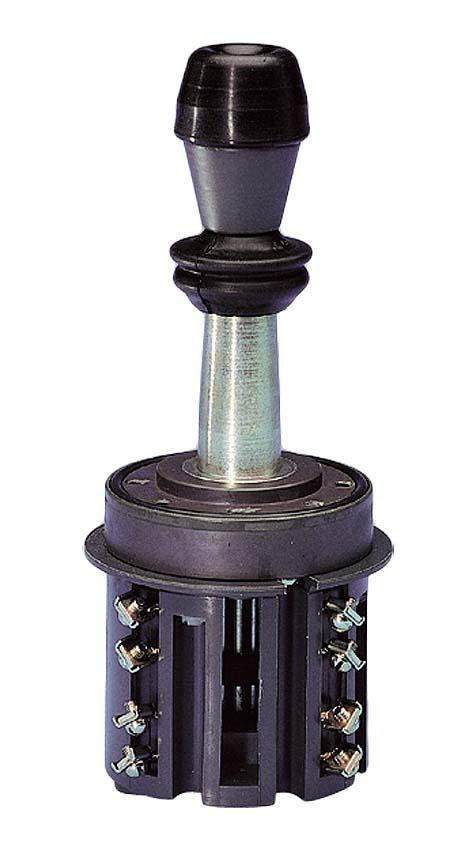

Series Features Include:

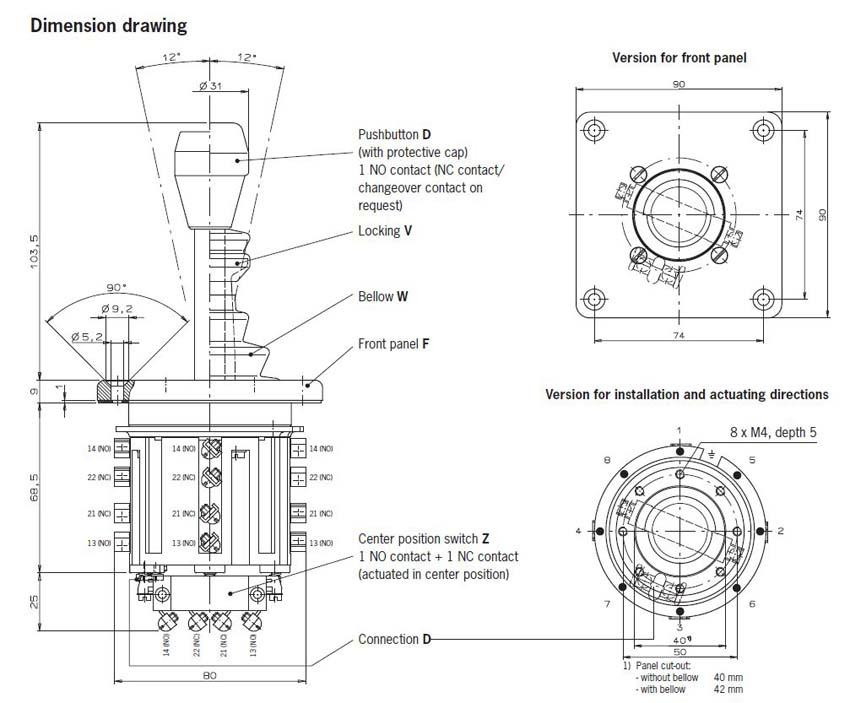

• Front panel installation at rear or with front panel
• 1 to 8 actuating directions with stayput switches, spring return switches or combined
• One changeover contact with screw terminal for each actuating direction
• Center position switch
• Pushbutton in handle
• Housing material: Reinforced thermoplastic/aluminum
• Switching lever material: Galvanized steel
• Contact material Silver alloy
• Degree of protection acc. to IEC 529 (Actuating side with/without bellow): IP 65/IP 54
• Mounting: Front panel installation at rear or with front panel
• Weight: Approx. 0.7kg
• Max. number of switching elements: 8
• Switching contacts: Changeover contact Za IEC 947-5-1
• Switching principle: Snap-action contact element, design ES 502V1
• Rated insulation voltage Ui: 250 V
• Rated impulse withstand voltage Uimp: 2.5 kV
• Utilization category AC 15: 230 V/10 A
• Utilization category DC 13: 24 V/4 A
• Switching current, min., at 24 V: 50mA
• Switching voltage, min.: 24 V



Technical Information:

• Euchner Joystick Switches Catalog
