Product image is representative only, please verify specifications.
096478
Alt: 96478, WES13FWZ
$439.25
Joystick, WES13FWZ
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Series Features Include:
- Front panel installation at rear or with front panel
- 1 to 8 actuating directions with stayput switches, spring return switches or combined
- One changeover contact with screw terminal for each actuating direction
- Center position switch
- Pushbutton in handle
- Housing material: Reinforced thermoplastic/aluminum
- Switching lever material: Galvanized steel
- Contact material Silver alloy
- Degree of protection acc. to IEC 529 (Actuating side with/without bellow): IP 65/IP 54
- Mounting: Front panel installation at rear or with front panel
- Weight: Approx. 0.7kg
- Max. number of switching elements: 8
- Switching contacts: Changeover contact Za IEC 947-5-1
- Switching principle: Snap-action contact element, design ES 502V1
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2.5 kV
- Utilization category AC 15: 230 V/10 A
- Utilization category DC 13: 24 V/4 A
- Switching current, min., at 24 V: 50mA
- Switching voltage, min.: 24 V

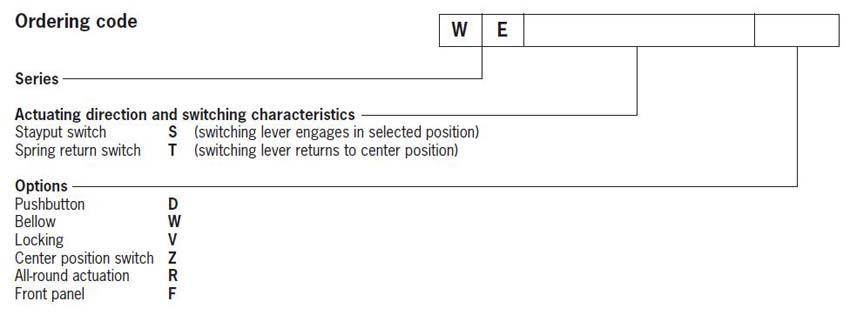

Technical Information:
