Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.



Founded by Emil Euchner in 1940, Euchner remains a family owned company.

Series Features Include:

• Front panel installation at rear or with front plate
• Switch with actuating directions 1-4
• One changeover contact with screw terminal for each actuating direction
• Front panel
• Bellows
• Housing material: Reinforced thermoplastic/aluminum, Bellows: elastomer, black
• Switching lever material: Galvanized steel
• Contact material Silver alloy
• Degree of protection on the front with bellows: IP 65

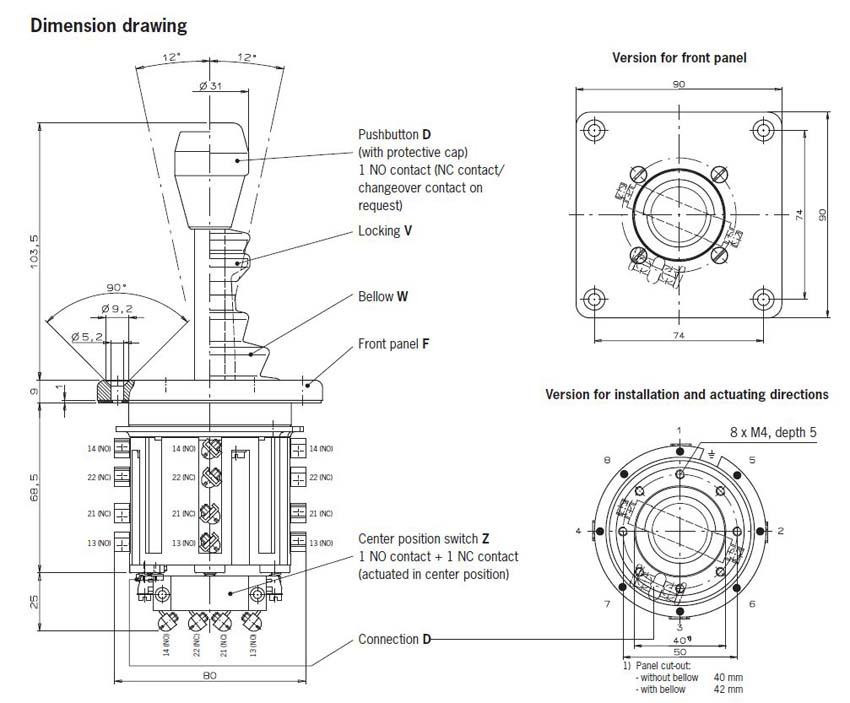

• Mounting type: 1x hole 42 and 8x 4.5 for M4
• Number of monitoring contacts: 4
• Weight: Approx. 0.7kg
• Connection: Screw terminal
• Rated insulation voltage Ui: 250 V
• Rated impulse withstand voltage Uimp: 2.5 kV
• Utilization category AC-15: 230V 10A
• Utilization category DC-13: 24V 4A
• Switching current, min. at 24 V: 50mA
• Switching voltage, min.: 24 V



Technical Information:

• Euchner Joystick Switches Catalog
