Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.



Founded by Emil Euchner in 1940, Euchner remains a family owned company.

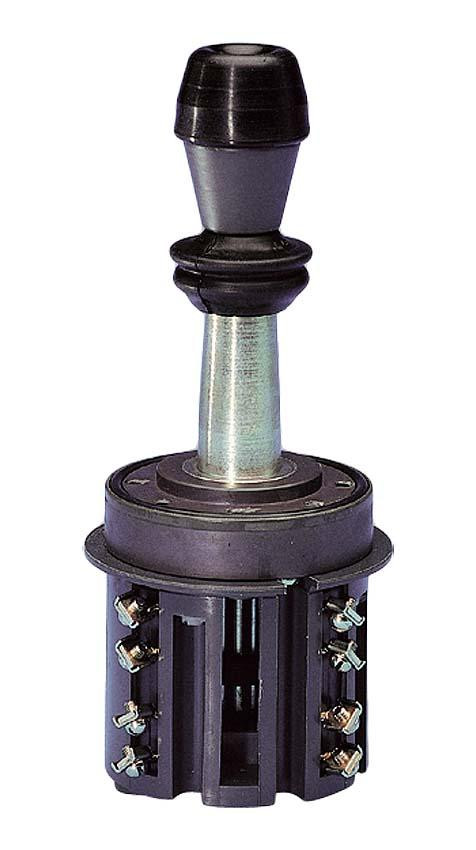

Series Features Include:

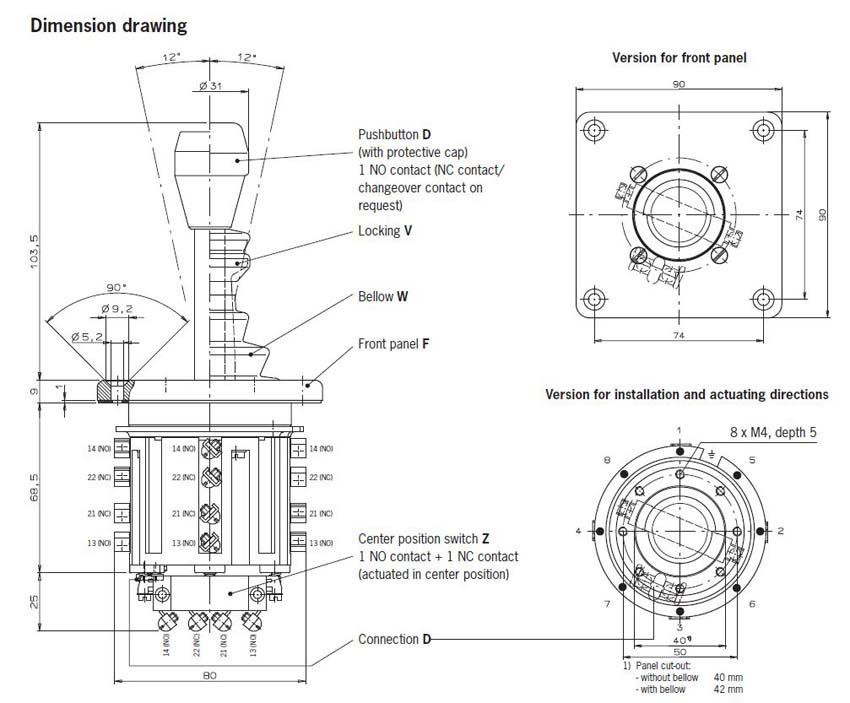

• Front panel installation at rear or with front plate
• Switch with actuating directions 1-8
• One changeover contact with screw terminal for each actuating direction
• Bellows
• Pushbutton in handle
• Switching current (at 24V): min. 50 mA
• Switching voltage: min. 24 V
• Rated impulse withstand voltage Uimp: 2.5 kV
• Rated insulation voltage Ui: 250 V
• Utilization category AC-15: 230V 10A
• Utilization category DC-13: 24V 4A
• Actuating directions: 8
• Connection: Screw terminal
• Degree of protection on the front with bellows: IP65
• Contact: Silver alloy
• Material: Housing thermoplastic/aluminum, Switching lever galvanized steel, Bellows elastomer, black

Technical Information:

• Euchner Joystick Switches Catalog
