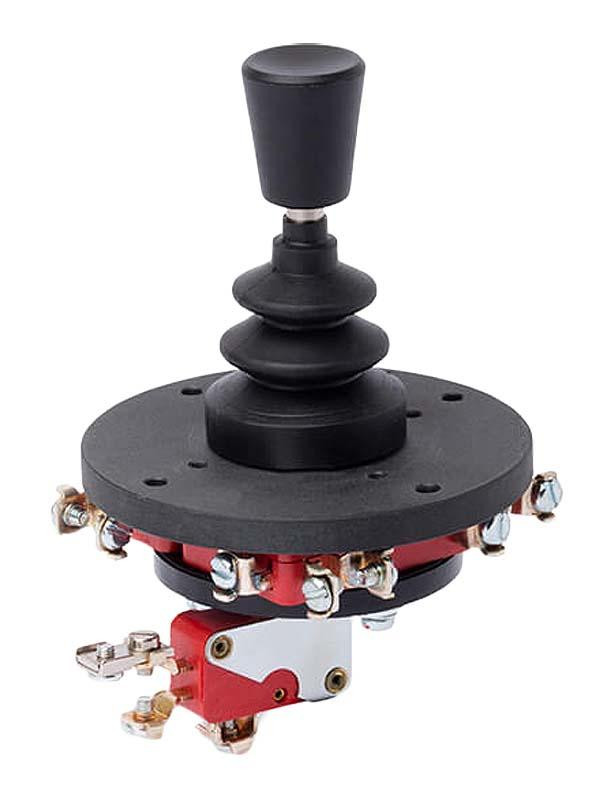

Description
Series Features Include:
- Front panel installation at rear
- 1 to 8 actuating directions, 4 switching elements. Stayput switch, spring return switch or combined
- One changeover contact with screw terminal for each actuating direction
- Center-position switch
- Housing material: Thermoplastic, Bellows: elastomer, black
- Switching lever material: Stainless steel
- Contact material Silver alloy
- Weight: Approx. 0.2kg
- Degree of protection acc. to IEC 529 (Actuating side with/without bellow): IP 65
- Actuating directions: 2
- Number of monitoring contacts: 2
- Connection: Screw terminal
- Mounting type: Control panel installation at rear, hole 22.5
- Switching principle: Changeover contact C, IEC 947-5-1
- Rated impulse withstand voltage Uimp: 2.5 kV
- Rated insulation voltage Ui: 250 V
- Utilization category AC-15: 230V 5A
- Utilization category DC-13: 24V 3A
- Switching current, min. at 24 V: 10mA
- Switching voltage, min.: 12 V
