Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.

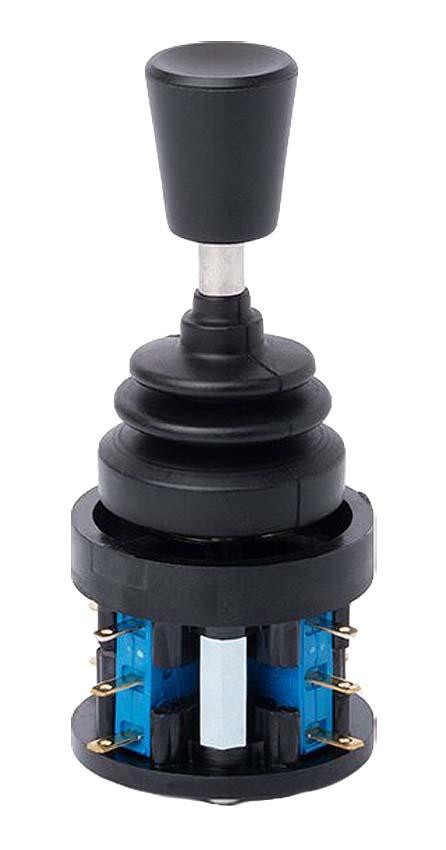

Series Features Include:
Front panel installation according to IEC 947-5-1 D22
1 to 8 actuating directions, 4 switching elements. Stayput switch, spring return switch or combined
One changeover contact with tab connector 2.8 x 0.5 IEC 760 for each actuating direction
Center-position switch
Housing material: Duroplast Thermoplastic, Bellows: elastomer, black
Switching lever material: Stainless steel
Contact material Silver alloy
Weight: Approx. 0.1kg
Degree of protection acc. to IEC 529 (Actuating side with/without bellow): IP 65
