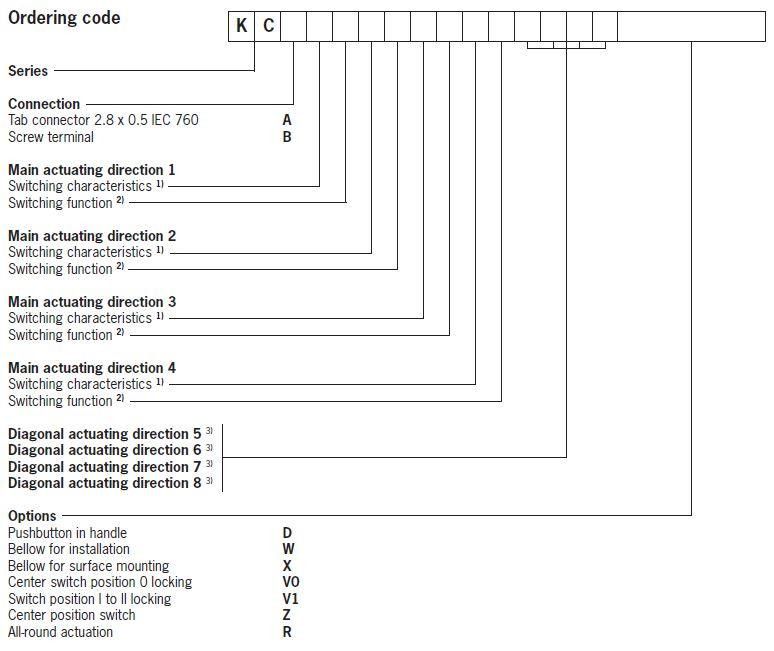

KCB6B6B6B6B0000V1WZ
Alt: 045255, 45255, KCB6B6B6B6B0000V1WZ
$395.06
Joystick, Screw Terminal, 4 Actuating Directions, Locking in Switch Position 1 to 2 (V1), Bellows for Panel Mounting (W), Center Position Switch (Z)
- Weight:
- 1.20 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Specifications
Alternate Part Number
045255, 45255, KCB6B6B6B6B0000V1WZ
Illuminated/Non-Illuminated
Non-Illuminated
Material
See Spec
Normally Open/Closed
See Spec
Pushbutton Type
See Spec
Size
See Spec
Type of Product
Joystick
All - Voltage
24-240VAC/DC
Warranty
1 Year
Series
KC
Weight
1.2012
Series Features Include:
- 4 actuating directions
- Interlocking in switch position 1 to 2 (V1)
- Bellows for panel mounting (W)
- Center-position switch (Z)
- Housing material: Thermoplastic/aluminum, Bellows: elastomer, black
- Switching lever material: Galvanized steel
- Contact material Silver alloy
- Weight: Approx. 0.75kg
- Degree of protection on the front with bellows: IP65
- Actuating directions: max. 4 max. 3 positions (0-1-2) possible per type and direction
- Connection: Tab connector 2.8 x 0.5 IEC 760
- Mounting type: Panel cut-out depending on version X or W
- Number of monitoring contacts: max. 9 8 + 1
- Switching principle: Changeover contact C, IEC 947-5-1
- Rated impulse withstand voltage Uimp: 2.5 kV
- Rated insulation voltage Ui: 250 V
- Utilization category AC-15: 230V 4A
- Utilization category DC-13: 24V 2A
- Switching current, (at 24V): min. 12 mA, min. 10 V
