Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.



Founded by Emil Euchner in 1940, Euchner remains a family owned company.

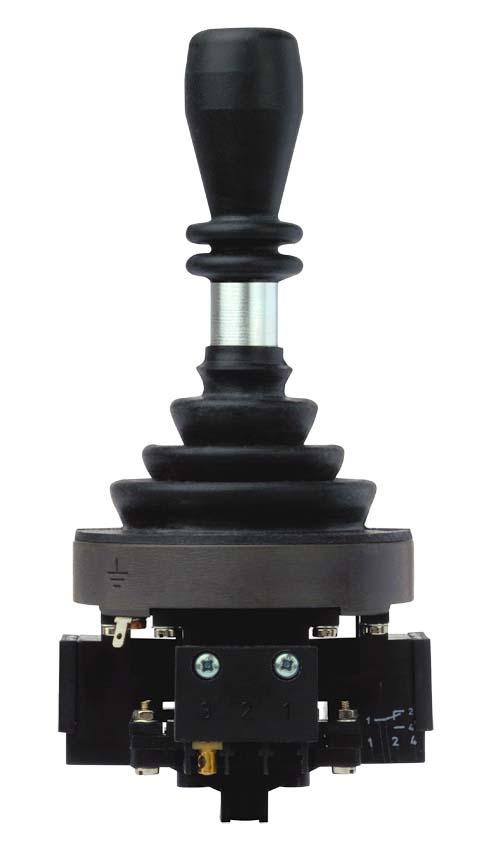

Series Features Include:

• 2 actuating directions
• Interlocking in switch position 0 (V0)
• Bellows for surface mounting (X)
• Center-position switch (Z)
• Housing material: Reinforced thermoplastic/aluminum, Bellows: elastomer, black
• Switching lever material: Galvanized steel
• Contact material Silver alloy
• Weight: Approx. 0.75kg
• Degree of protection on the front with bellows: IP65
• Actuating directions: max. 2 max. 3 positions (0-1-2) possible per type and direction
• Connection: Screw terminal
• Mounting type: Panel cut-out depending on version X or W
• Number of monitoring contacts: max. 5 4 + 1
• Switching principle: Changeover contact C, IEC 947-5-1
• Rated impulse withstand voltage Uimp: 2.5 kV
• Rated insulation voltage Ui: 250 V
• Utilization category AC-15: 230V 4A
• Utilization category DC-13: 24V 2A
• Switching current, (at 24V): min. 12 mA, min. 10 V

Technical Information:

• Euchner Joystick Switches Catalog
