024781

Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.



Founded by Emil Euchner in 1940, Euchner remains a family owned company.

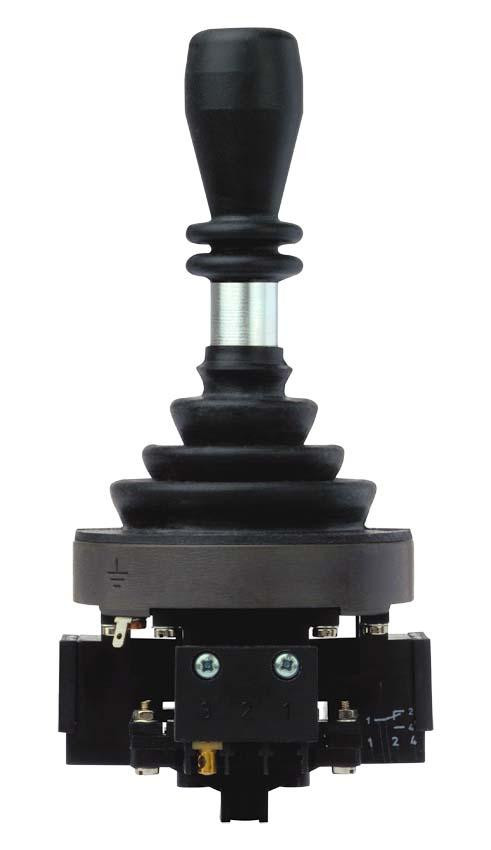

Series Features Include:

• Front panel installation at rear or with front plate
• 1 to 8 actuating directions with 1 or 2 switch positions for each actuating direction
• Switch positions as stayput switch or spring return switch in various combinations
• Center-position switch
• Pushbutton in handle
• Housing material: Reinforced thermoplastic/aluminum, Bellows: elastomer, black
• Switching lever material: Galvanized steel
• Contact material Silver alloy
• Weight: Approx. 0.75kg
• Degree of protection acc. to IEC 529 (Actuating side with/without bellow): IP 65/IP 50
• Max. number of actuating directions: 8
• All-round actuation R Actuation of one switching element (vertically or horizontally) or two adjacent switching elements (diagonally) at the same time
• Max. number of switching elements: 3 per direction
• Connection: Tab connector 2.8 x 0.5 IEC 760 (ES 584), Screw terminal (ES 556)
• Mounting: Front panel installation at rear or with front panel
• Switching principle: Snap-action contact element, design ES 584 or ES 556
• Rated impulse withstand voltage Uimp: 2.5 kV
• Rated insulation voltage Ui: 250 V
• Utilization category AC-15: 230V 4A
• Utilization category DC-13: 24V 2A
• Switching current, (at 24V): min. 12 mA, min. 10 V

Technical Information:

• Euchner Joystick Switches Catalog
