Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.



Founded by Emil Euchner in 1940, Euchner remains a family owned company.

Series Features Include:

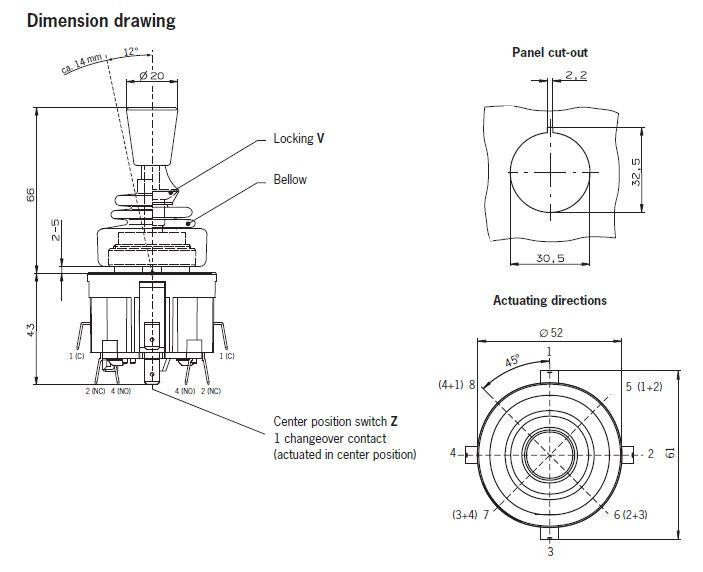

• Front panel installation according to IEC 947-5-1 D30

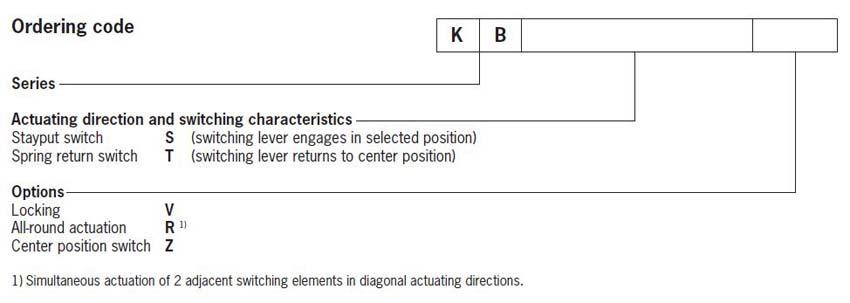

• 1 to 8 actuating directions, 4 switching elements. Stayput switch, spring return switch or combined
• One changeover contact with tab connector 6.3 x 0.8 IEC 760 for each actuating direction
• Housing material: Thermoplastic
• Switching lever material: Stainless steel
• Contact material Silver alloy
• Weight: Approx. 0.2kg
• Degree of protection acc. to IEC 529 (Actuating side with/without bellow): IP 65
• Mounting: IEC 947-5-1 D30
• Connection: Tab connector 6.3 x 0.8 IEC 760 (Screw terminal on request)
• Switching principle: Snap-action contact element
• Rated insulation voltage Ui: 250 V
• Rated impulse withstand voltage Uimp: 2.5 kV
• Utilization category AC-15: 230 V/5 A
• Utilization category DC-13: 24 V/3 A
• Switching current, min. at 24 V: 10mA
• Switching voltage, min.: 12 V



Technical Information:

• Euchner Joystick Switches Catalog
