Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.

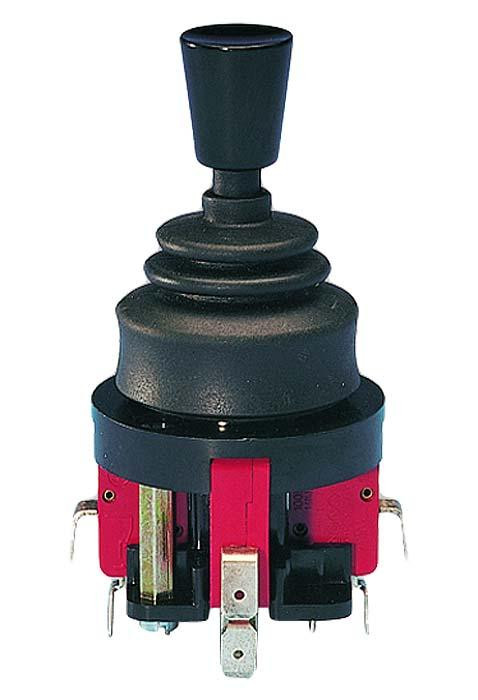

Series Features Include:
- Front panel installation according to IEC 947-5-1 D30
- Pushbutton, actuating directions 1+3
- One changeover contact with tab connector 6.3 x 0.8 IEC 760 for each actuating direction
- Housing material: Thermoplastic
- Switching lever material: Stainless steel
- Contact material Silver alloy
- Weight: Approx. 0.2kg
- Degree of protection acc. to IEC 529 (Actuating side with/without bellow): IP 65
- Mounting: IEC 947-5-1 D30
- Number of monitoring contacts: 2
- Actuating directions: 2
- Connection: Tab connector 6.3 x 0.8 IEC 760
- Switching principle: Changeover contact C, IEC 947-5-1
- Rated insulation voltage Ui: 250 V
- Rated impulse withstand voltage Uimp: 2.5 kV
- Utilization category AC-15: 230 V/5 A
- Utilization category DC-13: 24 V/3 A
- Switching current, min. at 24 V: 10mA
- Switching voltage, min.: 12 V
