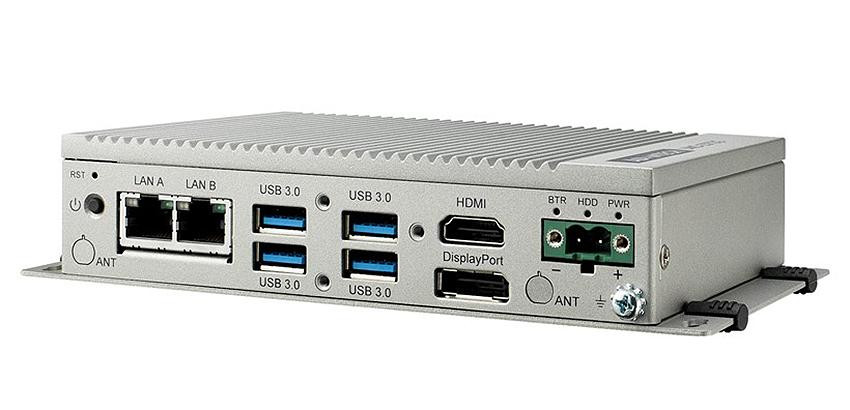

UNO-247-J1N1AE

Features Include:

• CPU: Intel® Celeron® J3455 1.5GHz
• Graphics Engine: Intel® HD Graphics
• Memory: 1 x DDR3L SO-DIMM Slot
• OS Support: Microsoft® Windows 10 2019 LTSC, Linux
• Power Input: 12 VDC
• Storage: 1 x mSATA, 1 x 2.5" SSD/HDD bay
• BIOS: AMI EFI 64 Mbit Flash BIOS
• Ethernet: Realtek® RTL8111G-CG GbE
• LED Indicators: PWR
• Power Consumption: 17 W @ 12 VDC
• Watchdog Timer: 1~255 s
• Audio: Line-Out
• Displays: 1 x HDMI, 1 x DP
• Expansion: 1 x HDMI, 1 x VGA
• LAN Ports: 2 x 10/100/1000 Mbps
• Shock Protection: 50 G, half sine
• Power Connector: 1 x DC Jack
• Serial Ports: 4 x RS-232, 2 x RS-485
• USB Ports: 2 x USB 3.0, 2 x USB 2.0
• Dimension (W x H x D): 200 x 140 x 50 mm
• Enclosure: Aluminum housing
• Mounting: Stand, Din-rail
• Compact size with fanless design
• Rubber stopper design for stand mount and optional kit for DIN-rail mount
• Threaded DC Jack design for more steady power supply
• Optimized mechanical design for easier RAM swapping

Technical Information:

• Advantech UNO-247 Intel® Celeron IoT Edge Computer Technical Data
• Advantech UNO-247 Intel® Celeron IoT Edge Computer User Manual
• Advantech UNO-247 AdvLinuxTU-2 User Manual
• Advantech UNO-247 AdvLinuxTU-2 User Manual
• Advantech "How to enable CPU Turbo mode in BIOS of UNO-247?"
• Advantech UNO Product Thermal Design Declaration
