Exergen
IRT/C-K-140F/60C
Infrared T/C, K Type, 140°F/60°C, Stainless Steel, 1:1 FOV, Regular Mount, Pre Calibrated
$334.05
IRT/C.SV-K-140F/60C
Alt: 113300
$365.50
Infrared T/C, K Type, 140°F/60°C, Stainless Steel, 1:1 FOV, Side View Mount, Shielded K Cable, 70-190°F
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Exergen has three main divisions; consumer medical, professional medical and industrial automation products. We are your authorized Exergen distirbutor for their industrial division.
Exergen is the leader in infrared thermocouples and has the world's only self powered one. They also offer microscanners and thermal switches. Their products are invented, assembled, tested and packaged in the USA! Exergen is headquartered in Watertown, Massachusetts.
Specifications
Alternate Part Number
113300
Series
IRt/c Series
Shielded/Unshielded
Shielded - Flush
Type of Sensor
Infrared T/C
Warranty
2 Years
Weight
0.25
Features Include:
- Sensing Range: -50 to 1200 °F (-45 to 650 °C)
- Ambient Temperature Range: 0 to 212 °F (-18 to 100 °C)
- Optimum Range Selections: Eight models per t/c type
- Field-of-View: 1:1 (60°) approximately
- Minimum Spot Size: 0.3" (8 mm)
- Spectral Response: 6.5 to 14 µ
- Output Impedance: 3 Kohms approximately
- Cable: Twisted shielded pair of base thermocouple material (J, K, etc.), 3 ft. (.9) m) standard length, Teflon sheathed, rated to 392 ºF (200 ºC) continuous service.

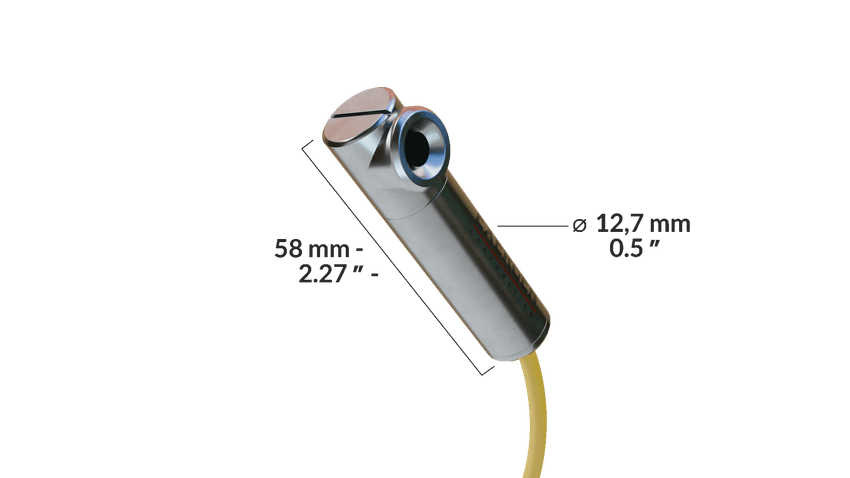

- Dimensions: 2.27" x .50" Diameter (57.8 x 12.7 mm)
- Weight: 1.4 oz (40 g) with cable
- Housing: Stainless steel, hermetically sealed, exceeds NEMA 4, 4x; IP65, 67, intrinsically safe, cable shield grounded to housing and electrically isolated from signal.
