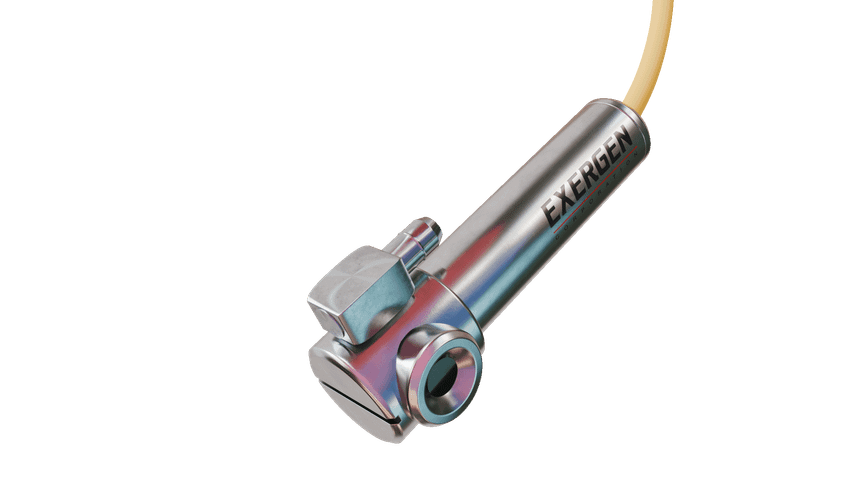

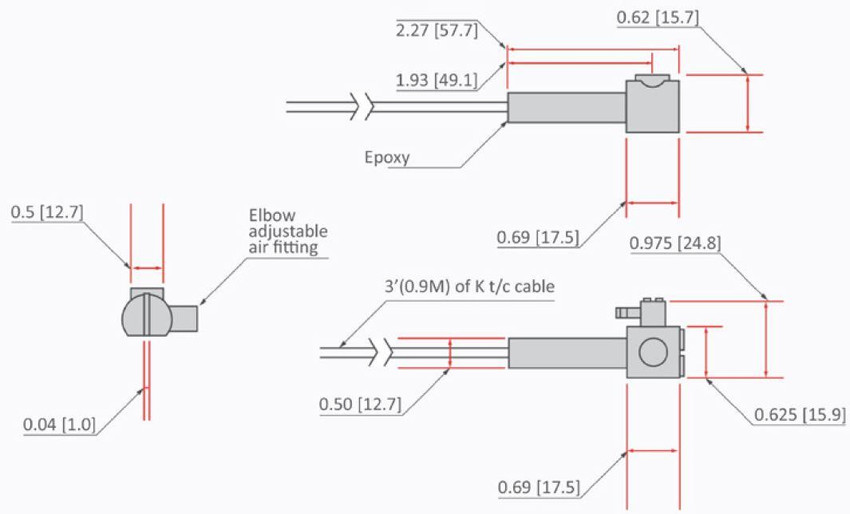

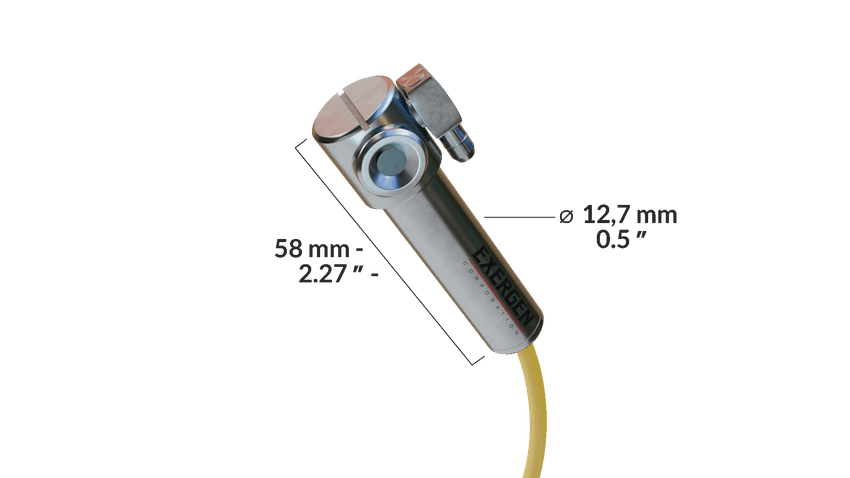

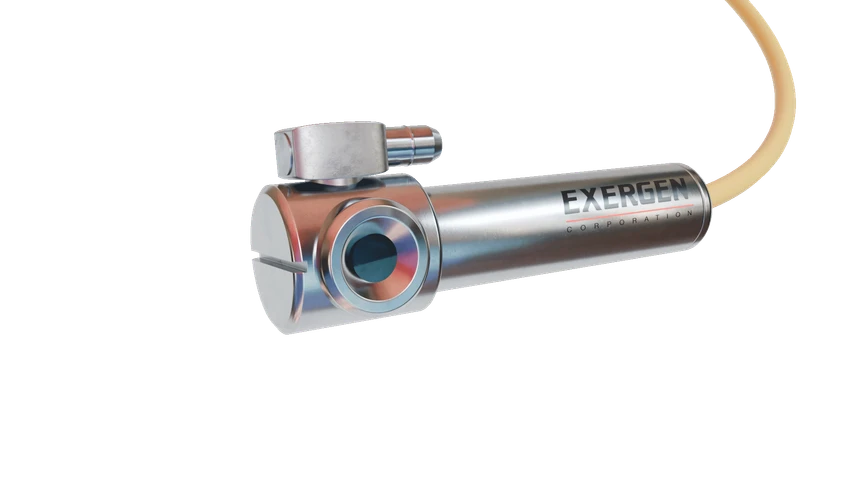

IRT/C.3SV-J-440F/220C

Exergen has three main divisions; consumer medical, professional medical and industrial automation products. We are your authorized Exergen distirbutor for their industrial division.



Exergen is the leader in infrared thermocouples and has the world's only self powered one. They also offer microscanners and thermal switches. Their products are invented, assembled, tested and packaged in the USA! Exergen is headquartered in Watertown, Massachusetts.

Features Include:

• Sensing Range: -50 to 1200 °F (-45 to 650 °C)
• Ambient Temperature Range: 0 to 248°F (-18 to 120°C)
• Linear Range: 8 models per thermocouple type
• Field-of-View: approximately 3:1 (17°)
• Minimum Spot Size: 0.2" (5 mm)
• Spectral Response: 6.5 to 14 µ
• Output Impedance: 4to 8 Kohms approximately
• Housing: Stainless steel, hermetically sealed, exceeds NEMA 4,4X; IP65, 67, intrinsically safe, cable
  shield grounded to housing and electrically isolated from signal
• Cable: Twisted shielded pair of base thermocouple material (J), 3ft (.9m) std length, Teflon sheathed,
  rated to 392°F (200°C) continuous service
• Weight: 1.6 oz (44 g) with cable
• Air Purge: Built-in; designed for severe paint or ink environment; 3’ (0.9 m) of tubing provided

Need More Information?

• Exergen IRt/c.3SV Base Model Product Overview
• Exergen Infrared Temperature Product Handbook & Installation Guide
• Exergen Pre-Calibrated Sensor Quick Selection Guide
• Exergen IRt/c Sensor Mission Statement
