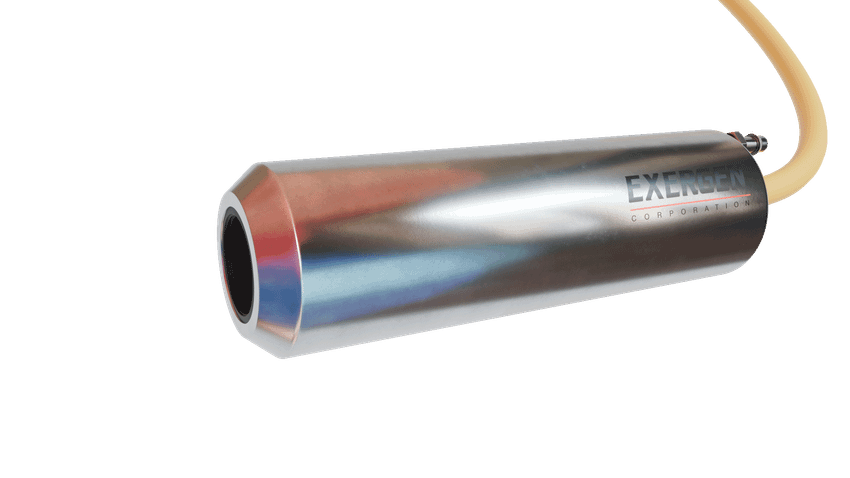

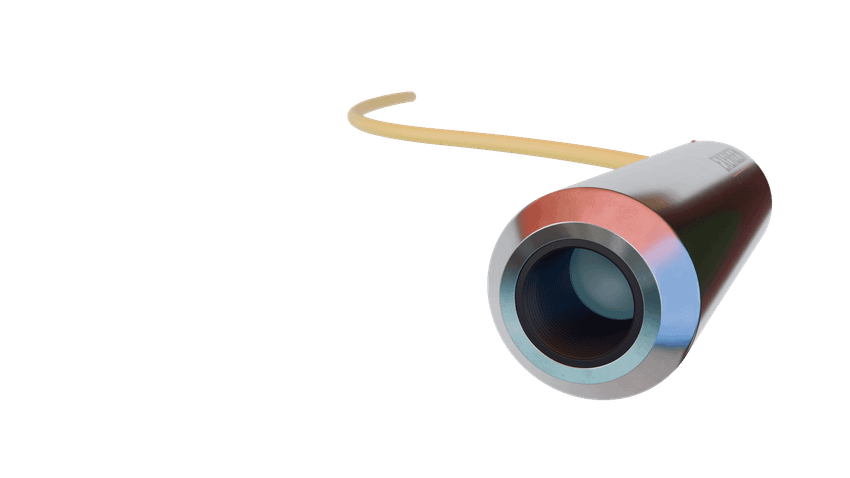

IRT/C.20A-K-LOE

Exergen has three main divisions; consumer medical, professional medical and industrial automation products. We are your authorized Exergen distirbutor for their industrial division.



Exergen is the leader in infrared thermocouples and has the world's only self powered one. They also offer microscanners and thermal switches. Their products are invented, assembled, tested and packaged in the USA! Exergen is headquartered in Watertown, Massachusetts.

Features Include:

• Field of View: 20:1 (3°) approximately

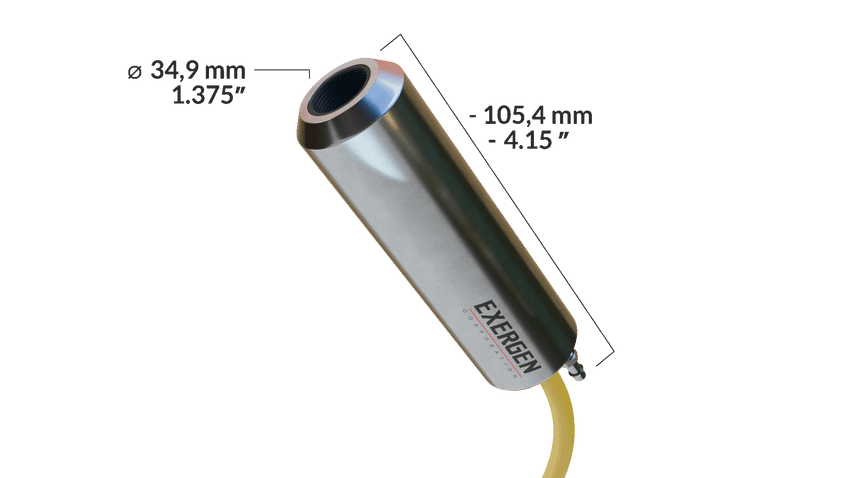

• Dimensions: 4.15” x 1.375” Dia. (105 x 35 mm)
• Housing: Stainless steel, hermetically sealed, exceeds NEMA 4,4x; IP65,67, intrinsically safe, cable shield
  grounded to housing and electrically isolated from signal
• Cable: Twisted shielded pair of base thermocouple material (J,K,etc.), 3 ft (.9 m) std length, Teflon
  sheathed, rated to 392°F (200°C) continuous service
• Air Purge: Built-in; cooling capacity to 400°F (200°C) ambient; 3’ (0.9 m) polyurethane tubing provided
• Repeatability: 0.02°F (0.01°C)
• Interchangeability: ±1%
• Resolution: approx. 0.0001°C

Sensing Range:

• Non-Metal: 500 to 3000°F (260 to 1650°C)
• Metal: 1000 to 3500°F (540 to 1930°C)

Minimum Spot Size at dist. (with supplied apertures):

• No Aperture: 0.8” (20 mm) at <16” (400 mm)
• ½” Aperture: 0.5” (13 mm) at <9” (230 mm)
• ¼” Aperture: 0.25” (6 mm) at<3.5” (90 mm)
