Exergen
IRT/C.1X-K-80F/27C
Infrared T/C, K Type, 80°F/27°C, Stainless Steel, 1:1 FOV, Air Purge, Threaded Body, Bracket and Locknuts
$321.30
IRT/C.01-K-80F/27C
Alt: 114126
$195.50

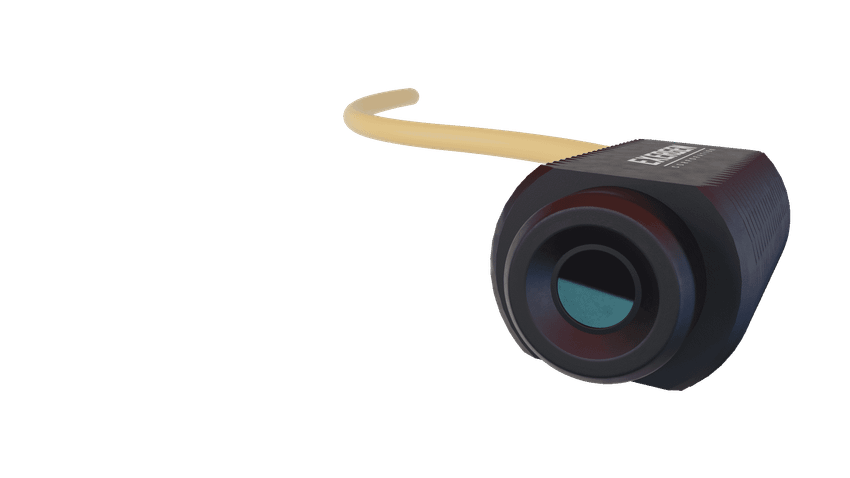

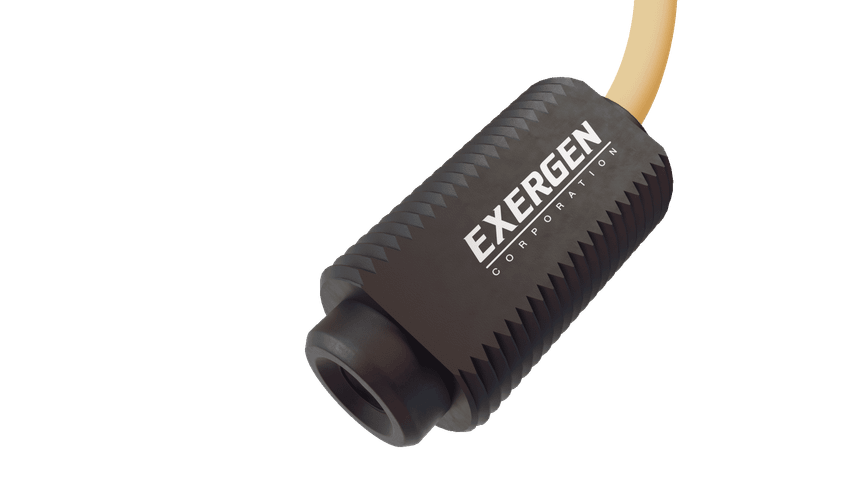

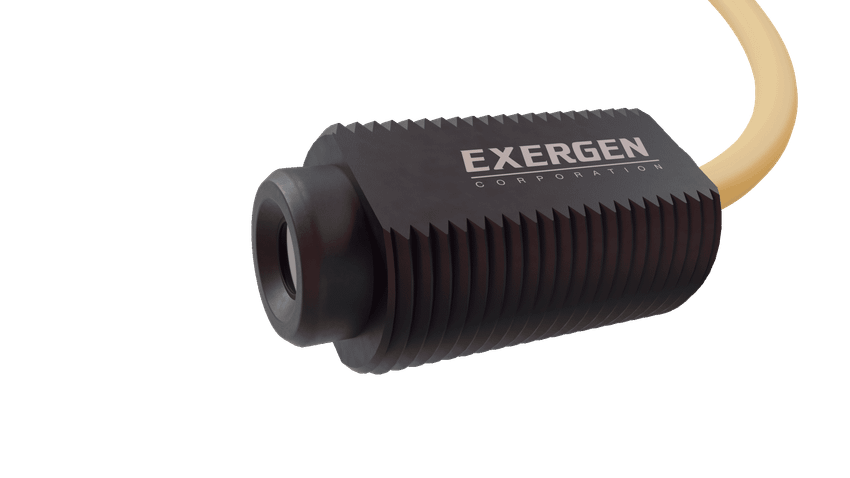

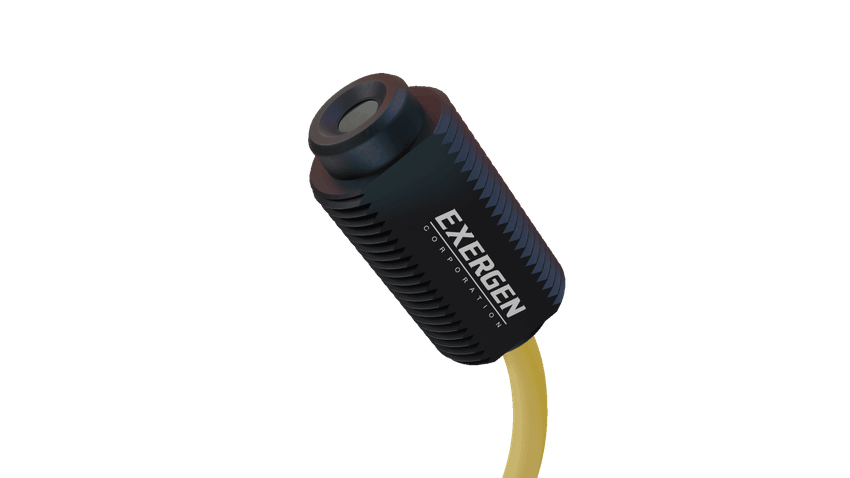

Infrared T/C, K Type, ABS, 1:1 FOV, 80°F/27°C, Linear from 32-120°F, Unshielded, Light Duty with Nylon Locknuts
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Exergen has three main divisions; consumer medical, professional medical and industrial automation products. We are your authorized Exergen distirbutor for their industrial division.
Exergen is the leader in infrared thermocouples and has the world's only self powered one. They also offer microscanners and thermal switches. Their products are invented, assembled, tested and packaged in the USA! Exergen is headquartered in Watertown, Massachusetts.
Features Include:
- Temperature Range: -50 to 550 °F (-45 to 287 °C)
- Ambient Temperature Range: 0 to 160 °F (-18 to 70 °C)
- Field of View: 1:1 (53° approximately)
- Minimum Spot Size: 0.3" (8 mm)
- Spectral Response: 6.5 to 14 µ
- Output Impedance: 3 Kohms approximately
- Cable: Thermocouple extension grade, PVC jacket, unshielded
- Housing: High strength ABS, hermetically sealed, exceeds NEMA 4, 4x; IP65, 67, intrinsically safe. Two locknuts supplied
- Dimensions: 1.28" x .71" Diameter (32.5 x 20 mm)
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Exergen
IRT/C.03-K-80F/27C
Infrared T/C, K Type, 80°F/27°C, Stainless Steel, 3:1 FOV, 32° - 120°F, Unshielded
$303.45
$594.15
Exergen
IRT/C.3X-K-80F/27C
Infrared T/C, K Type, 80°F/270°C, Stainless Steel, 3:1 FOV, Air Purge, Bracket and Locknuts
$425.00
Exergen
IRT/C.3SV-K-80F/27C
Infrared T/C, K Type, 80°F/27°C, Stainless Steel, 3:1 FOV, Air Purge, Bracket and Locknuts, Linear 32-120°F, Only 1 remaining in Stock!
$425.00
Exergen
IRT/C.3X-J-80F/27C
Infrared T/C, J Type, 80°F/270°C, Stainless Steel, 3:1 FOV, Air Purge, Shielded, Linear from 32-120°F
$425.00
Exergen
IRT/C.01-K-140F/60C
Infrared T/C, K Type, ABS, 1:1 FOV, 140°F/60°C, Linear from 70-190°F, Unshielded, Light Duty with Nylon Locknuts
$195.50
Exergen
IRT/C.01-K-340F/170C
Infrared T/C, K Type, ABS, 1:1 FOV, 340°F/170°C, Linear from 280-370°F, Unshielded, Light Duty with Nylon Locknuts
$195.50
Exergen
IRT/C.01-K-440F/220C
Infrared T/C, K Type, ABS, 1:1 FOV, 440°F/220°C, Linear from 320-500°F, Unshielded, Light Duty with Nylon Locknuts
$195.50
