Exergen
IRT/C-K-240F/120C
Infrared T/C, K Type, 240°F/120°C, Stainless Steel, 1:1 FOV, Regular Mount, Pre Calibrated, Linear 180-250°F
$303.45
Available Now!
Available Now!
(1 in stock)
IRT/C.01-K-240F/120C
Alt: 114121
$195.50
Infrared T/C, K Type, ABS, 1:1 FOV, 240°F/120°C, Linear from 180-250°F, Unshielded, Light Duty with Nylon Locknuts
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Exergen has three main divisions; consumer medical, professional medical and industrial automation products. We are your authorized Exergen distirbutor for their industrial division.
Exergen is the leader in infrared thermocouples and has the world's only self powered one. They also offer microscanners and thermal switches. Their products are invented, assembled, tested and packaged in the USA! Exergen is headquartered in Watertown, Massachusetts.
Features Include:
- Temperature Range: -50 to 550 °F (-45 to 287 °C)
- Ambient Temperature Range: 0 to 160 °F (-18 to 70 °C)
- Field of View: 1:1 (53° approximately)
- Minimum Spot Size: 0.3" (8 mm)
- Spectral Response: 6.5 to 14 µ
- Output Impedance: 3 Kohms approximately
- Cable: Thermocouple extension grade, PVC jacket, unshielded
- Housing: High strength ABS, hermetically sealed, exceeds NEMA 4, 4x; IP65, 67, intrinsically safe. Two locknuts supplied

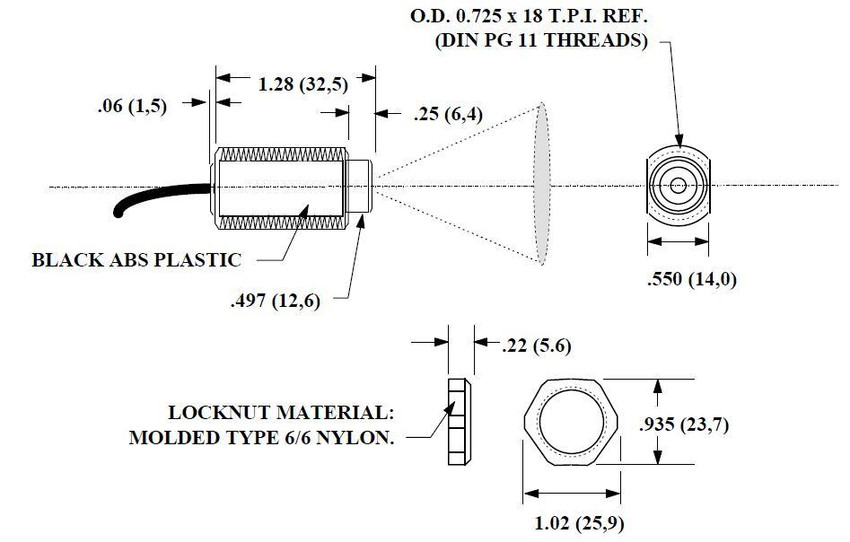

- Dimensions: 1.28" x .71" Diameter (32.5 x 20 mm)
