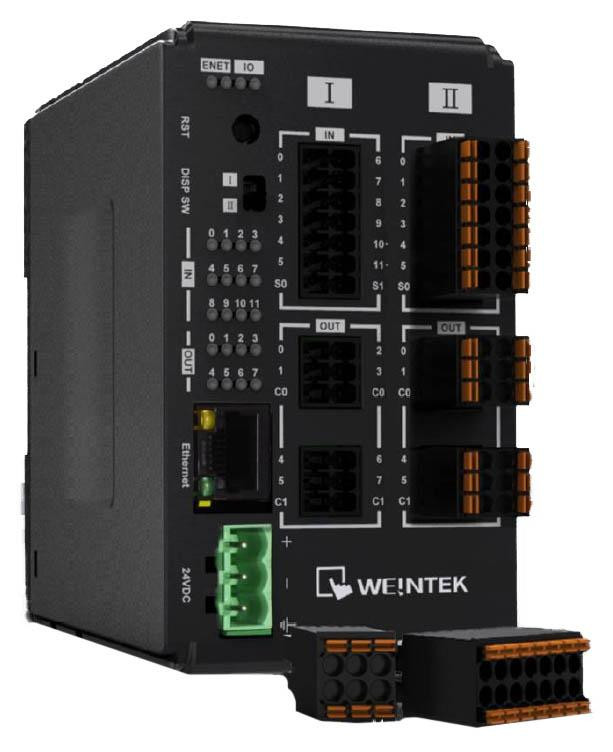

IR-ETN40R

Supporting Modbus TCP/IP and EtherNet/IP industrial Ethernet protocols, the Weintek iR-ETN40R is an expandable Ethernet remote I/O module with 24 digital input channels (including 4 high-speed ones) and 16 relay output channels.

It provides various unique features to support a highly efficient and cost-effective implementation of modern automated control systems.

Features

• Compact many-in-one design
• iR-ETN40R provides built-in support for MODBUS TCP Server and EtherNet/IP Adapter protocols
• 24 digital inputs and 16 relay outputs.
• Expandable design makes it possible to add additional digital, analog I/O, temperature modules, or pulse modules as required
• Input and output connectors are of push-in type, which greatly simplify installation and wiring tasks.
• High-speed inputs; iR-ETN40R offers 4 high-speed inputs for high-speed applications. These high-speed inputs can be configured for high-speed counter use (20 kHz, up to 4), or for A/B phase encoder use (10 kHz, up to 2 sets), depending on the application.
• Exclusive features include:

  • Stop Output - RunStop Pin function of iR-ETN40R allows designation of an input as RunStop Input Point, and when it receives a signal, all outputs are stopped immediately. An example use case would be to associate a stop button with the input so that all outputs can be deactivated at once upon pressing of the stop button.
  • Pulse Capture -  Pulse capture feature ensures that a high-speed pulse signal shorter than one scan cycle is held until the next scan cycle so that no pulse is missed.
• Quick generation of description files - EasyRemoteIO software is used to connect to iR-ETN40R and then generate the description file needed for I/O configuration. These files can then be imported by other software to complete configuration with minimal effort. EasyRemoteIO can generate the following files:

(1) EasyBuilder Pro Tag File: for EasyBuilder Pro for programming Weintek HMI.

(2) PLCopen XML: for CODESYS.

(3) EDS File: for EtherNet/IP Scanner devices.
