EB3C-R08CDN
Alt: EB3 Series
$362.51

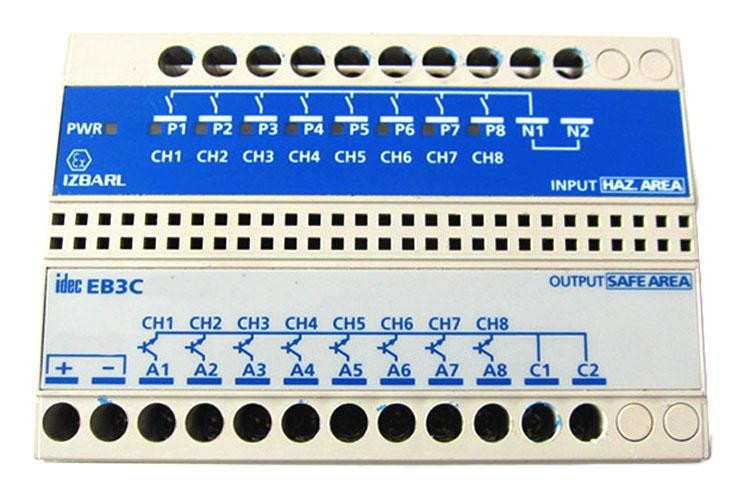

Intrinsic Barrier, 8 Channel, Relay, 24VDC, DIN Rail or Screw Mount
- Minimum Purchase:
- 1 unit
Description
Intrinsic Barrier, Relay, 8 Channels, Sink/Source, 24V DC
- Zone 0 /Class 1 Division 1 locations
- IEC60079 compliant
- Dry-contact switches with 0.5Ω maximum contact resistance can be connected to the EB3C.
- 8- and 16-circuit types are available in common wiring types, ideal for connection to PLCs.
- Universal AC power voltage (100 to 240V AC)
- No grounding required.
- IDEC’s original spring-up terminals minimizes wiring time.
- Installation: 35-mm-wide DIN rail mounting or direct panel mounting
- Global usage USA: FM Canada: CSA Europe: CE marking, ATEX
